Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning SRSC R 3232 P20

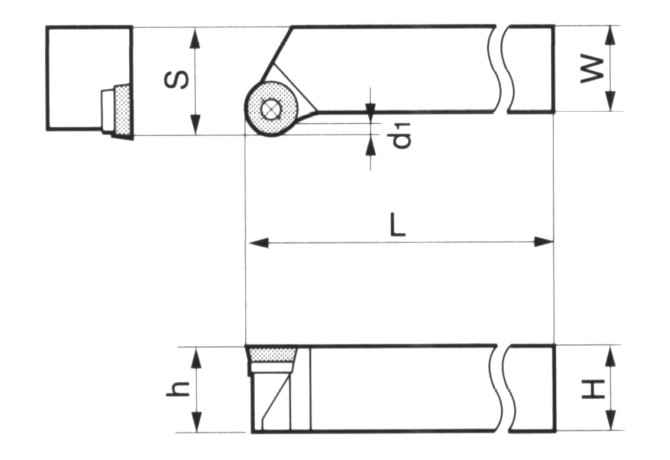

SRSC R 3232 P20

SRSC R 3232 P20

SRSC R 3232 P20

SRSC R 3232 P20

SRSC R 3232 P20

Sumitomo

Артикул: SRSC R 3232 P20

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

20 mm

BLDA Tool style code Position A

10

C1A Insert thickness Pos. A

6.35 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

1.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/1/2021

DIN

VKT32320105

DIN CSW1

RC2006M03N

FamilyProducts

toolholder for heavy machining, SRSCR/L type

GAMF Rake angle radial

0 Degree

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

R - Right

HF Functional height

32 mm

ID Technical product number

SRSC R 3232 P20

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

L Cutting edge length

20 mm

LF Functional length

170 mm

LOC-03 B Shank width

32 mm

LOC-03 CCFMS Form

01

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

3232

LOC-03 H Shank height

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT32320105

MIID Master insert identification

RCMA200612

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

SRSC R 3232 P20

OAL Overall length

170 mm

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

40 mm

WFA A dimension on wf

4 mm

Working process

DDA - External turning
