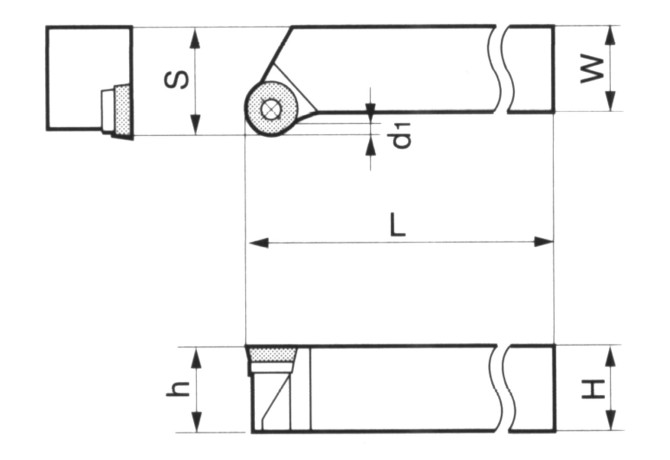

SRSC R 2020 K10T3

SRSC R 2020 K10T3 SRSC R 2020 K10T3

SRSC R 2020 K10T3

Sumitomo
Артикул: SRSC R 2020 K10T3
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
10 mm
BLDA Tool style code Position A
10
C1A Insert thickness Pos. A
3.97 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/1/2021
DIN
VKT20200105
DIN CSW1
RC10T3M03N
FamilyProducts
toolholder for heavy machining, SRSCR/L type
GAMF Rake angle radial
0 Degree
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
20 mm
ID Technical product number
SRSC R 2020 K10T3
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
L Cutting edge length
10 mm
LF Functional length
125 mm
LH Head length
25 mm
LOC-03 B Shank width
20 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
2020
LOC-03 H Shank height
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT20200105
MIID Master insert identification
RCMA10T3
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
SRSC R 2020 K10T3
OAL Overall length
125 mm
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
G - straight shank design
WF Functional width
25 mm
WFA A dimension on wf
1.5 mm
Working process
DDA - External turning
