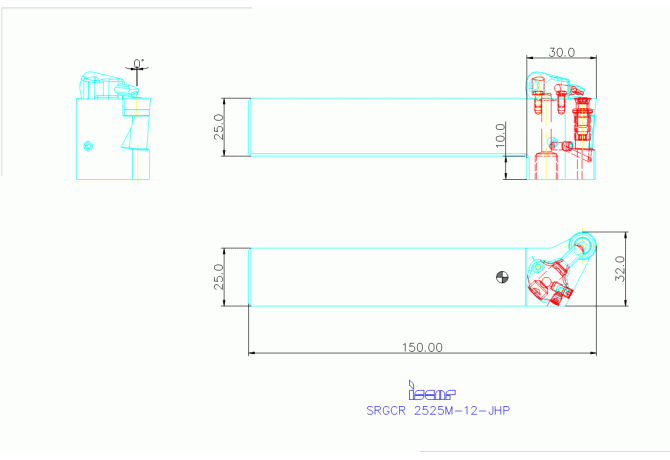

SRGCR 2525M-12-JHP

SRGCR 2525M-12-JHP SRGCR 2525M-12-JHP

SRGCR 2525M-12-JHP

Iscar
Артикул: 3603123
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
12 mm
BLDA Tool style code Position A
10
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
8/7/2014
DIN
VKT25250115
FamilyProducts
Screw Lock Toolholders for Round Insert
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
3603123
Interface codes
J6 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree
L Cutting edge length
12 mm
LF Functional length
150 mm
LH Head length
30 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
2525
LOC-03 H Shank height
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250115
MIID Master insert identification
RCMT1204M0
Name Identifying order number
SRGCR 2525M-12-JHP
OAL Overall length
150 mm
STDNO Standard
SRGCR 2525M-12
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
32 mm
Working process
No working processes available
