Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning SRGCL2525M12

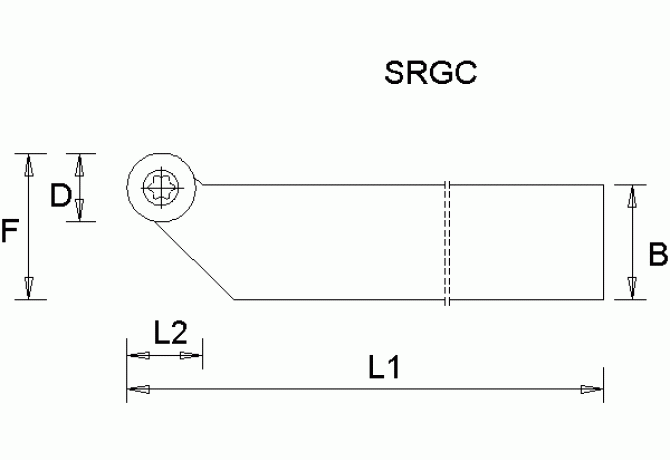

SRGCL2525M12

SRGCL2525M12 SRGCL2525M12

SRGCL2525M12

Kennametal
Артикул: 1097933
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/4/2011
DIN
VKT25250105
FamilyProducts
TOOLHOLDER SRGC 45°
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
L - Left
HF Functional height
25 mm
ID Technical product number
1097933
Interface codes
J6 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
45 Degree
L Cutting edge length
12 mm
LF Functional length
150 mm
LH Head length
12.02 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
2525
LOC-03 H Shank height
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250105
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
SRGCL2525M12
OAL Overall length
150 mm
STDDES Standard designation
SRGCL2525M12
SX Shank cross section shape code
01 - Square shank
WF Functional width
32 mm
Working process
No working processes available
