Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning SRDCN3232P20

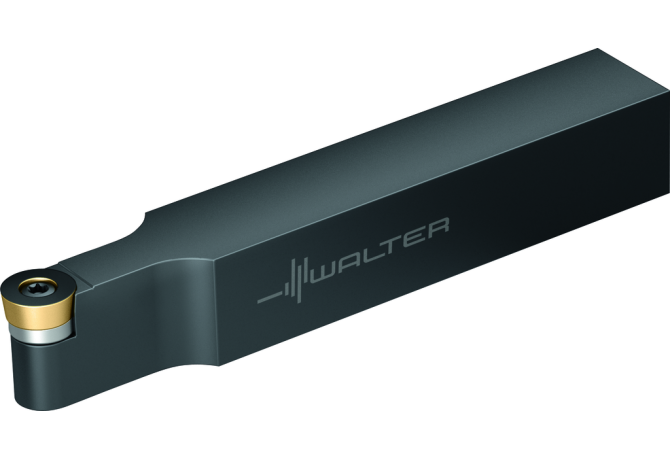

SRDCN3232P20

Артикул: 5335821

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

VKT32320105

DIN CSW1

RC2006M03N

FamilyProducts

Shank tool – Screw clamping SRDC

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

N - Neutral

HF Functional height

32 mm

ID Technical product number

5335821

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO

VKT01A3232$$$$

ISO CSW1

ISO$RC2006M03****M0

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

0 Degree

LAMS Inclination angle

0 Degree

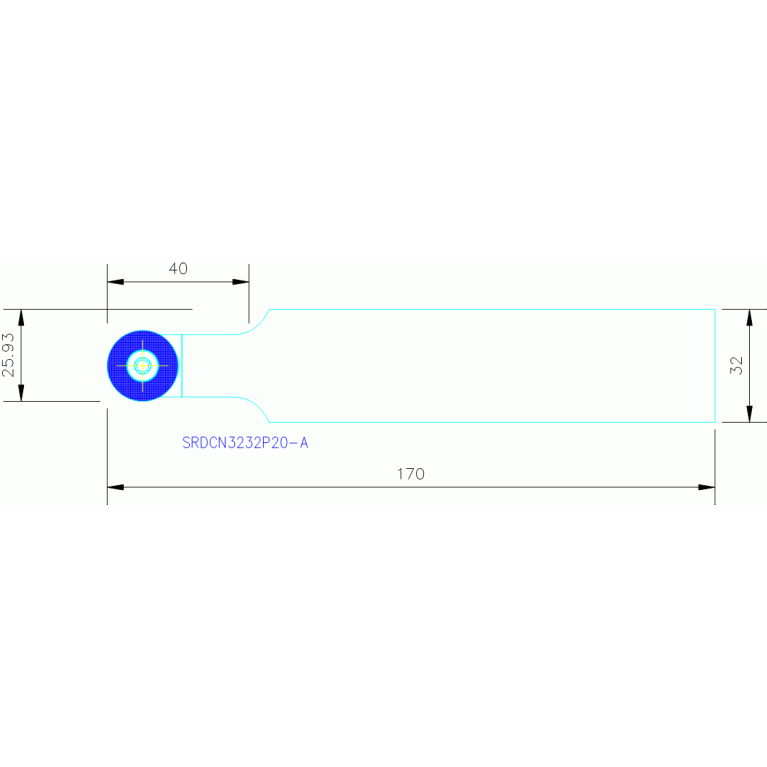

LF Functional length

170 mm

LOC-03 B Shank width

32 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

3232

LOC-03 H Shank height

32 mm

LOC-03 ISO

VKT01A3232$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT32320105

LPR Protruding length

170 mm

MIID Master insert identification

RCMT 20 06 M0

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

SRDCN3232P20

OAL Overall length

170 mm

THSC Tool holder shape code

G - straight shank design

WF Functional width

16 mm

Working process

DDA - External turning,DFA - External form turning

WT Weight of item

1.26 kg
