Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning SH19K-FSDUCL11

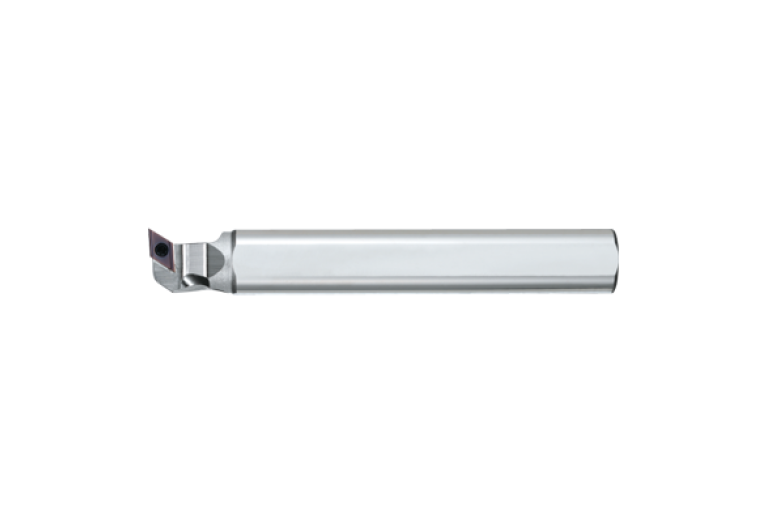

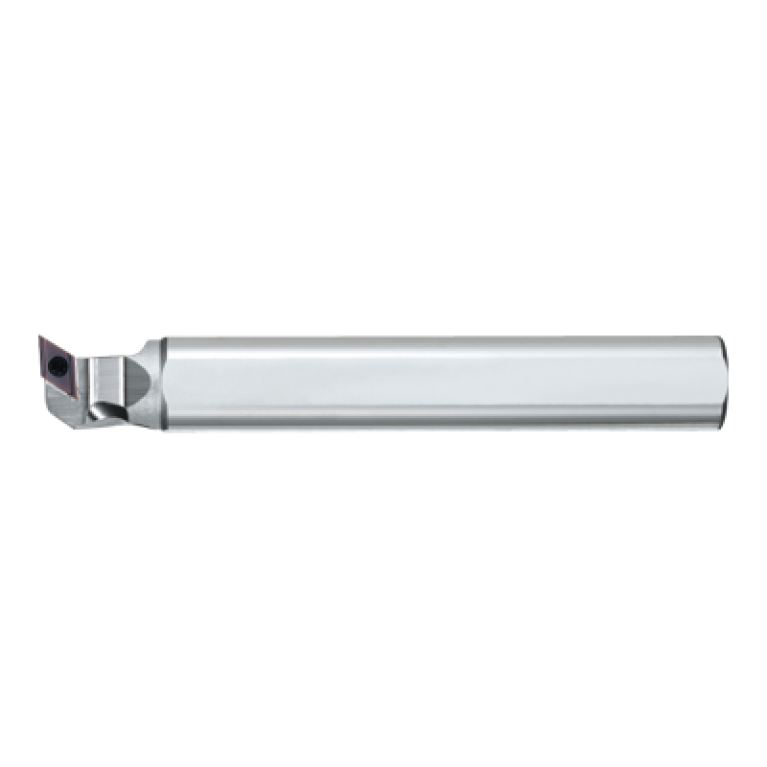

SH19K-FSDUCL11

SH19K-FSDUCL11

Mitsubishi Materials

Артикул: 348841

В наличии

В корзину

Описание

Характеристики

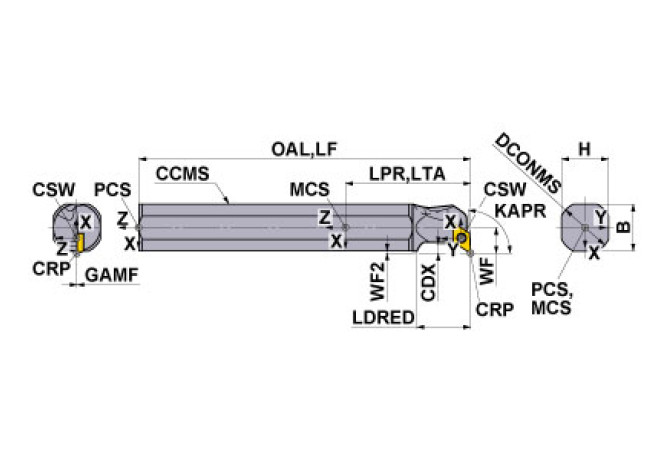

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

3.97 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.4 mm

Delivery state valid from

4/1/2022

DIN

ZYL07502235

DIN CSW1

MI-DC11T3 3N

FamilyProducts

external turning tools,small tools

HAND Cutting direction

L - Left

ID Technical product number

348841

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

LF Functional length

125 mm

LH Head length

20 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

3 Inch with coolant

LOC-03 CZCMS Connection size code

0750

LOC-03 DCONMS Diameter

19.05 mm

LOC-03 H Shank height

17 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL07502235

MIID Master insert identification

DC 11T3

Name Identifying order number

SH19K-FSDUCL11

OAL Overall length

125 mm

SX Shank cross section shape code

22 - Round shank

WF Functional width

9.25 mm

Working process

No working processes available
