Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning SDNCN0808L07

SDNCN0808L07

SDNCN0808L07 SDNCN0808L07

SDNCN0808L07

Kennametal
Артикул: 1097856
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/4/2011
DIN
VKT08080105
DIN CSW1
KH-WP SC DCGT0702
FamilyProducts

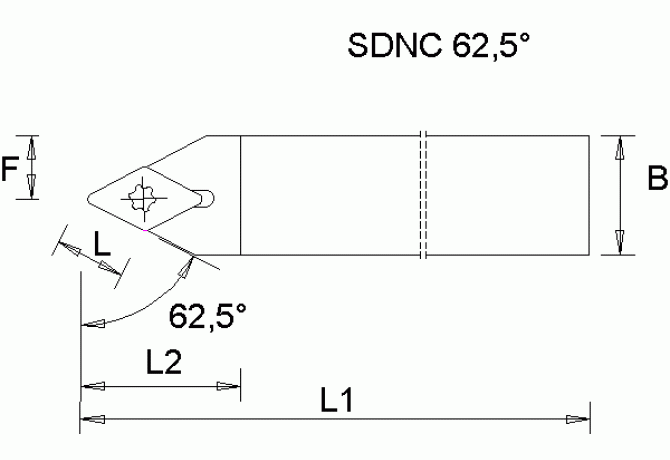

TOOLHOLDER SDNC 62.5°
HAND Cutting direction
N - Neutral
HF Functional height
8 mm
ID Technical product number
1097856
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
62.5 Degree
L Cutting edge length
7.75 mm
LH Head length
16 mm
LOC-03 B Shank width
8 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0808
LOC-03 H Shank height
8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT08080105
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
SDNCN0808L07
OAL Overall length
140 mm
SX Shank cross section shape code
01 - Square shank
WF Functional width
4.25 mm
Working process
No working processes available
