Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning SDNCN 2020K-13-SL

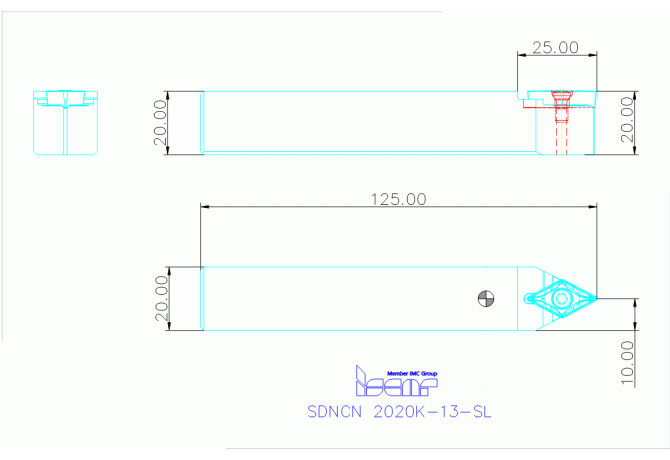

SDNCN 2020K-13-SL

SDNCN 2020K-13-SL SDNCN 2020K-13-SL

SDNCN 2020K-13-SL

Iscar
Артикул: 3603392
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
8/7/2014
DIN
VKT20200105
DIN CSW1
DC13T5 3N
EPSR Insert included angle
55 Degree
FamilyProducts
Screw Lock Toolholder for 55° Diamond Insert with
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
N - Neutral
HF Functional height
20 mm
ID Technical product number
3603392
Interface codes
J6 / J61
Interface codes CSW1
J41 /
ISO
VKT01A2020$$$$
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
62.5 Degree
L Cutting edge length
13 mm
LF Functional length
125 mm
LH Head length
25 mm
LOC-03 B Shank width
20 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
2020
LOC-03 H Shank height
20 mm
LOC-03 ISO
VKT01A2020$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT20200105
MIID Master insert identification
DCMT13T504-SM-SL
Name Identifying order number
SDNCN 2020K-13-SL
OAL Overall length
125 mm
STDNO Standard
SDNCN 2020K-13-SL
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
G - straight shank design
WF Functional width
10 mm
Working process
No working processes available
