Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning SDNCN 1010F-07

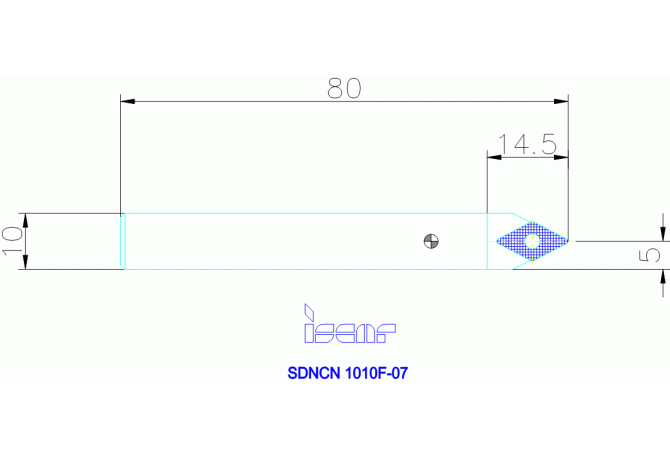

SDNCN 1010F-07

SDNCN 1010F-07

Iscar

Артикул: 3600900

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

6.35 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

2.38 mm

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

VKT10100105

DIN CSW1

DC0702 3N

EPSR Insert included angle

55 Degree

FamilyProducts

SDNCN 1010F-07

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

N - Neutral

ID Technical product number

3600900

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

62.5 Degree

L Cutting edge length

7 mm

LF Functional length

80 mm

LH Head length

14.5 mm

LOC-03 B Shank width

10 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

1010

LOC-03 H Shank height

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT10100105

MIID Master insert identification

DCMT070202

Name Identifying order number

SDNCN 1010F-07

OAL Overall length

80 mm

STDNO Standard

SDNCN1010F07

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

5 mm

Working process

No working processes available
