Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning SDNCN 0808 F07

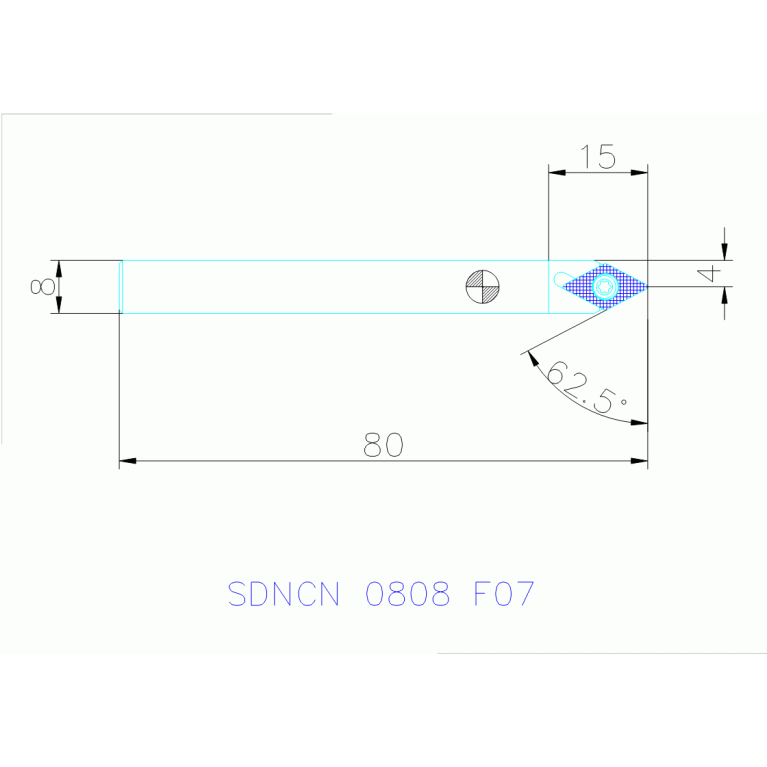

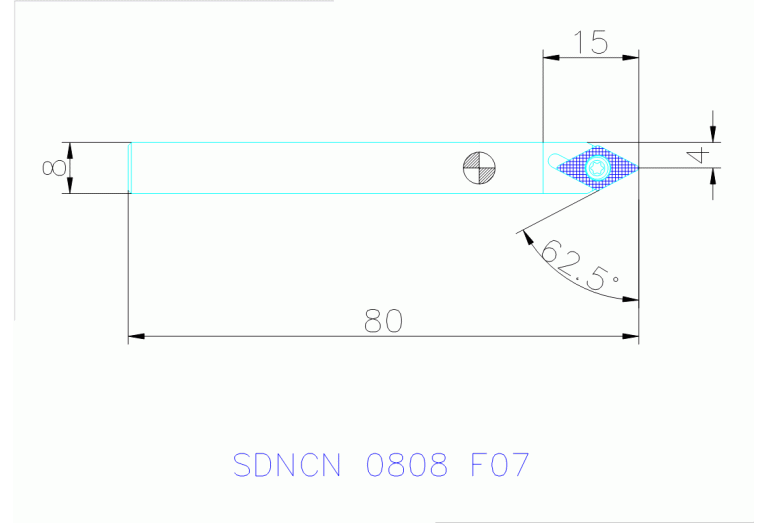

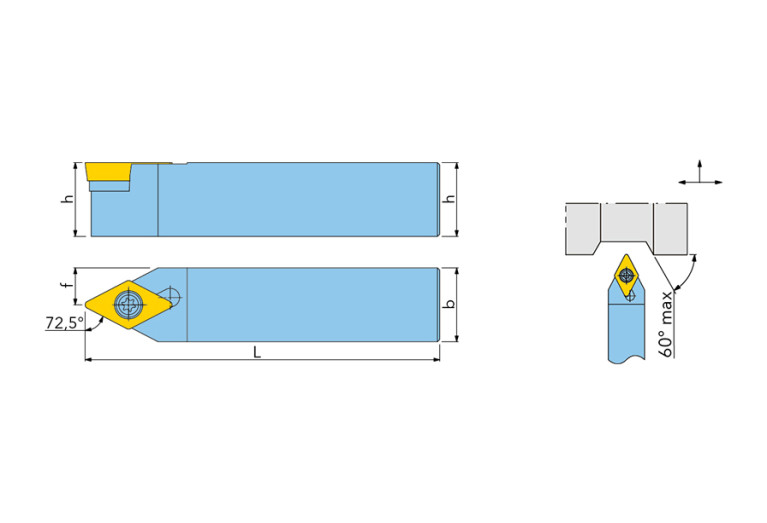

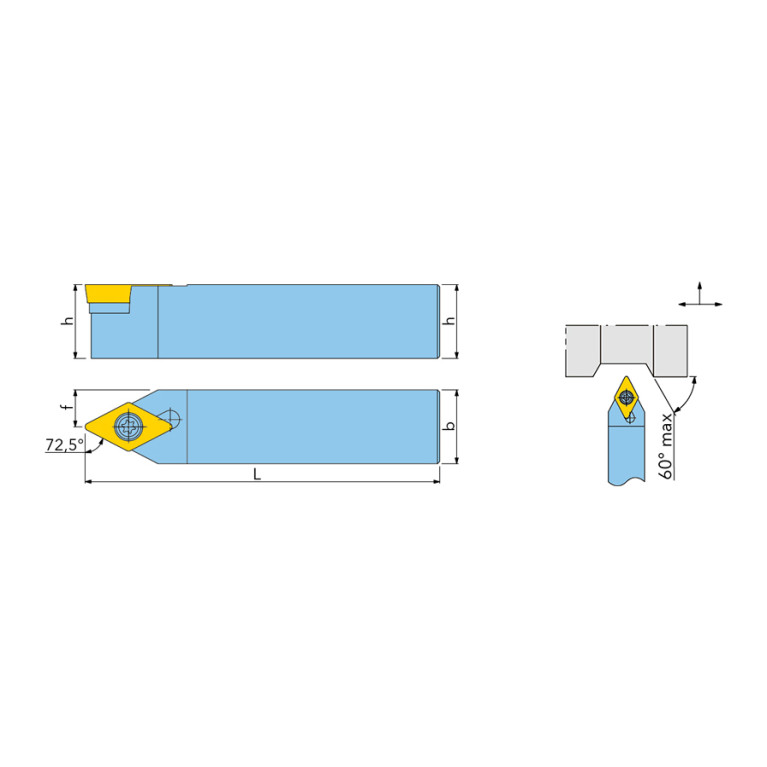

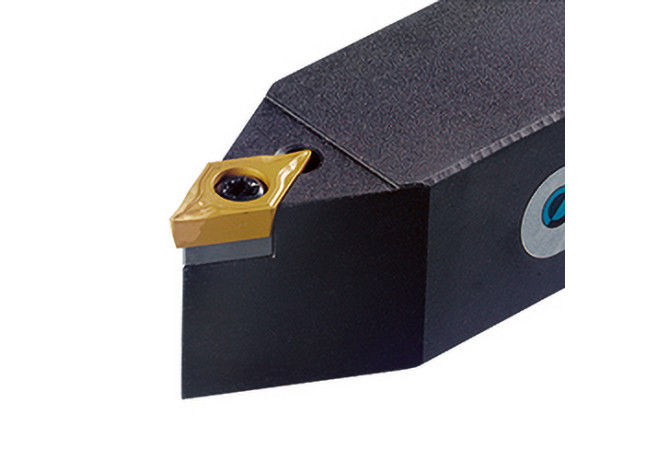

SDNCN 0808 F07

SDNCN 0808 F07

Ingersoll

Артикул: 6341246

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

BLDA Tool style code Position A

3

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state

LL - Stock limited

DIN

VKT08080105

DIN CSW1

DC0702023N

EPSR Insert included angle

55 Degree

FamilyProducts

SDNCN

HAND Cutting direction

N - Neutral

ID Technical product number

6341246

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

1

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

63 Degree

LF Functional length

80 mm

LOC-03 B Shank width

8 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0808

LOC-03 H Shank height

8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT08080105

MIID Master insert identification

DC 0702

Name Identifying order number

SDNCN 0808 F07

OAL Overall length

80 mm

STDDES Standard designation

SDNCN 0808 F07

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

4 mm

Working process

No working processes available

WT Weight of item

0.035 kg
