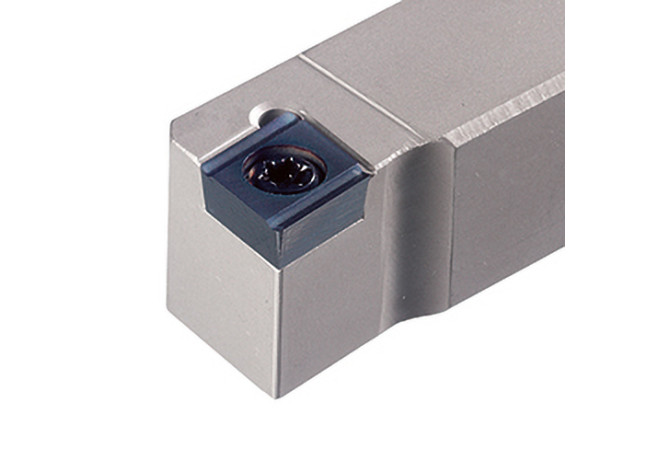

SCLCR 1616 K09-SH

SCLCR 1616 K09-SH SCLCR 1616 K09-SH SCLCR 1616 K09-SH SCLCR 1616 K09-SH

SCLCR 1616 K09-SH

Ingersoll
Артикул: 6224445
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
VKT16160105
DIN CSW1
CC09T3043N
EPSR Insert included angle
80 Degree
FamilyProducts
SCLCR-SH
HAND Cutting direction
R - Right
ID Technical product number
6224445
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

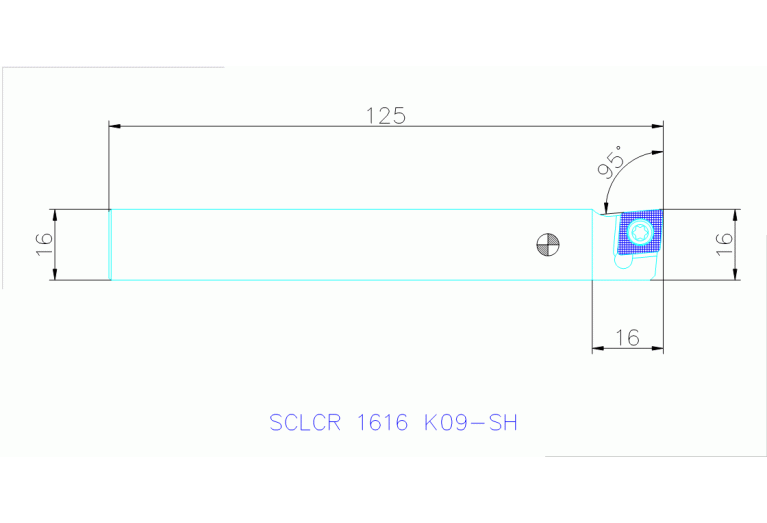

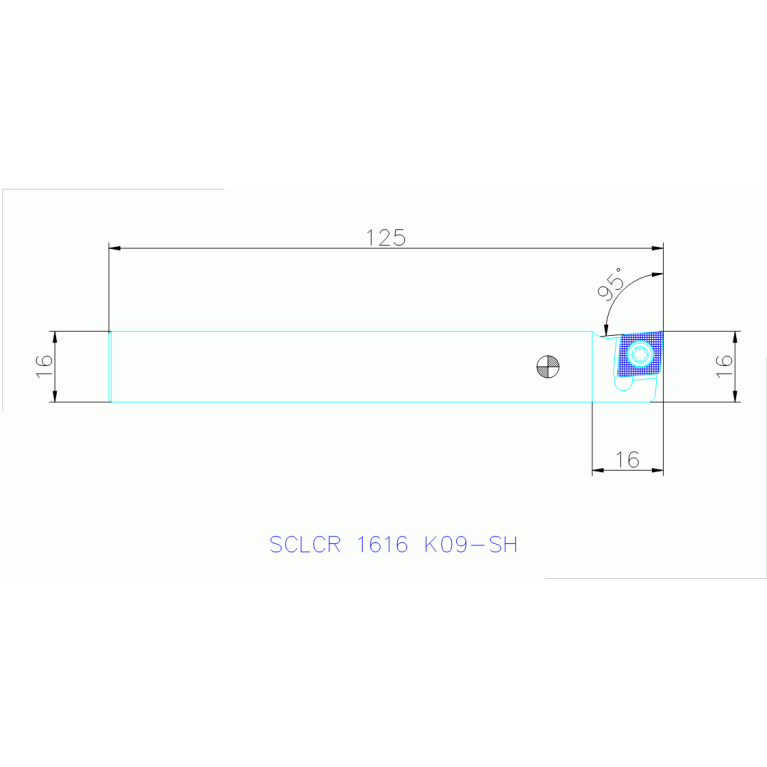

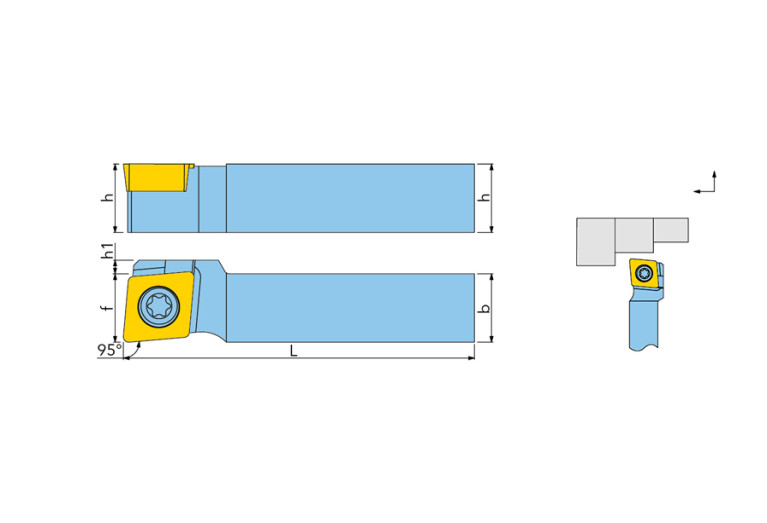

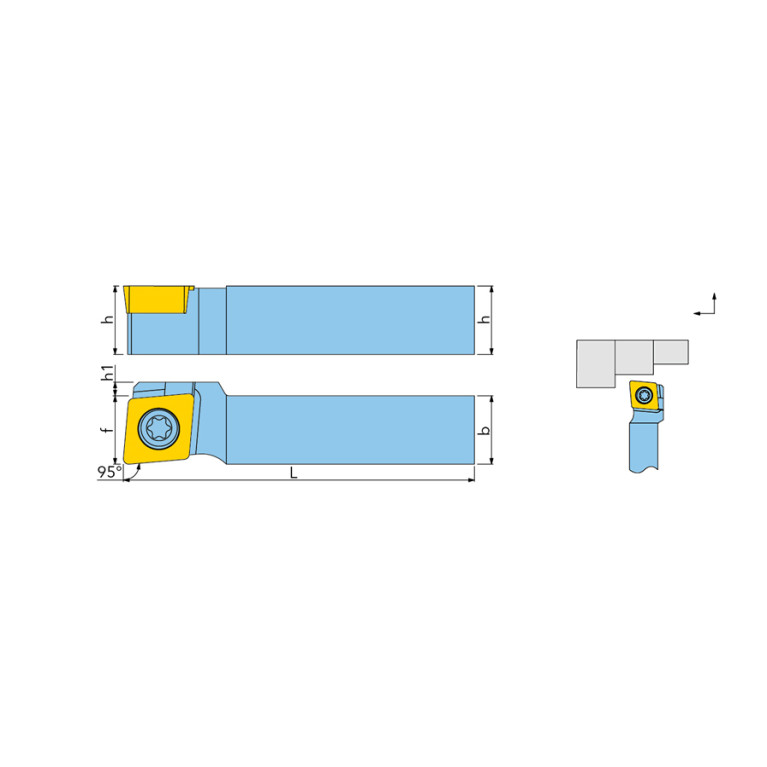

KAPR Tool cutting edge angle
95 Degree
LF Functional length
125 mm
LOC-03 B Shank width
16 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
1616
LOC-03 H Shank height
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160105
MIID Master insert identification
CC 09T3
Name Identifying order number
SCLCR 1616 K09-SH
OAL Overall length
125 mm
STDDES Standard designation
SCLCR 1616 K09-SH
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
16 mm
Working process
No working processes available
WT Weight of item
0.24 kg
