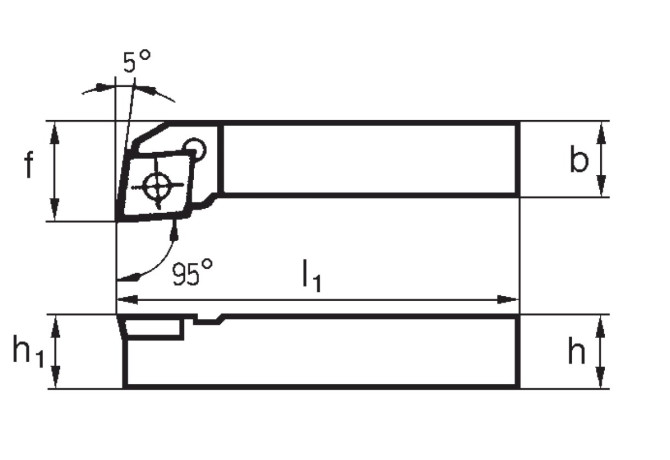

SCLC R 0808 D06

SCLC R 0808 D06 SCLC R 0808 D06

SCLC R 0808 D06

Sumitomo
Артикул: SCLC R 0808 D06
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
6.35 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
2.38 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/1/2021
DIN
VKT08080105
DIN CSW1
CC0602 3N
EPSR Insert included angle
80 Degree
FamilyProducts
S-type screw-on toolholder SCLCR/L
HAND Cutting direction
R - Right
HF Functional height
8 mm
ID Technical product number
SCLC R 0808 D06
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
5 Degree
L Cutting edge length
6 mm
LF Functional length
60 mm
LOC-03 B Shank width
8 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0808
LOC-03 H Shank height
8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT08080105
Name Identifying order number
SCLC R 0808 D06
OAL Overall length
60 mm
SX Shank cross section shape code
01 - Square shank
WF Functional width
10 mm
Working process
No working processes available
