Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning SCLC L 1616 H09

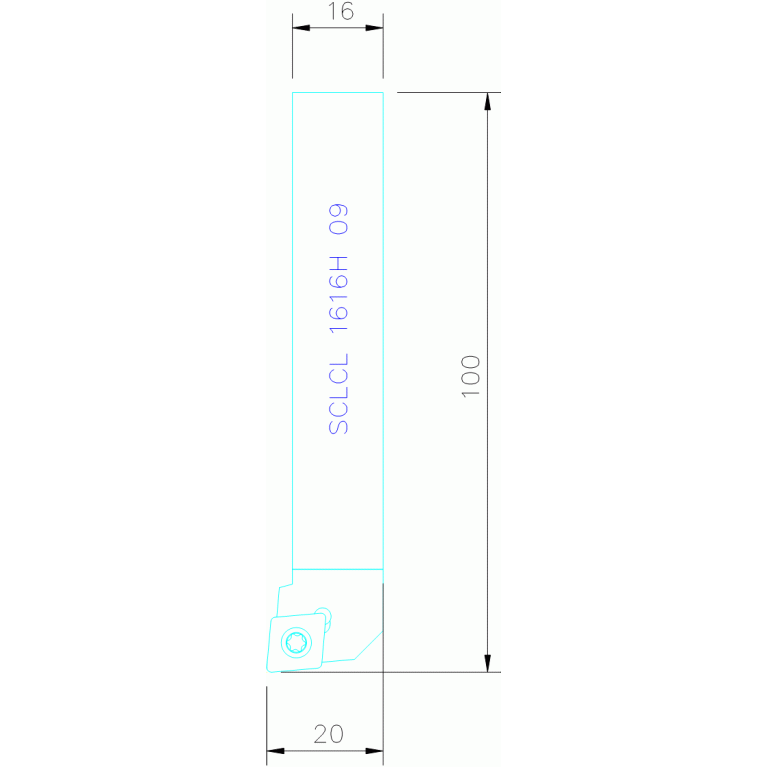

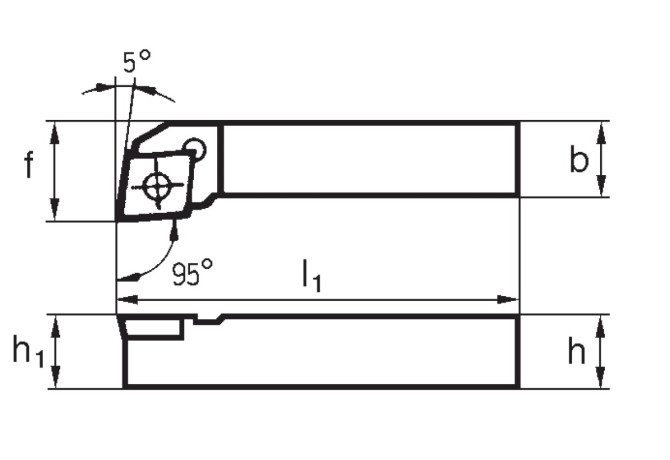

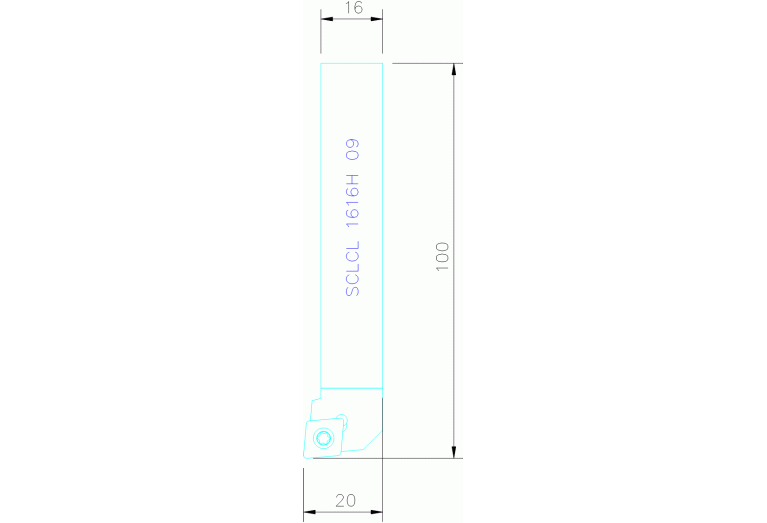

SCLC L 1616 H09

SCLC L 1616 H09 SCLC L 1616 H09 SCLC L 1616 H09

SCLC L 1616 H09

Sumitomo
Артикул: SCLC L 1616 H09
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
3.97 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/1/2021
DIN
VKT16160105
DIN CSW1
CC09T3 3N
EPSR Insert included angle
80 Degree
FamilyProducts
S-type screw-on toolholder SCLCR/L
HAND Cutting direction
L - Left
HF Functional height
16 mm
ID Technical product number
SCLC L 1616 H09
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
5 Degree
L Cutting edge length
9 mm
LF Functional length
100 mm
LOC-03 B Shank width
16 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
1616
LOC-03 H Shank height
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160105
Name Identifying order number
SCLC L 1616 H09
OAL Overall length
100 mm
STDDES Standard designation
SCLCL1616H09
SX Shank cross section shape code
01 - Square shank
WF Functional width
20 mm
Working process
No working processes available
