SCKPR0020K06

Артикул: SCKPR0020K06

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

KH - Kennametal

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN

ZYL02002205

DIN CSW1

KH-WP SC CPMT0602

DMIN Minimum bore diameter

15 mm

FamilyProducts

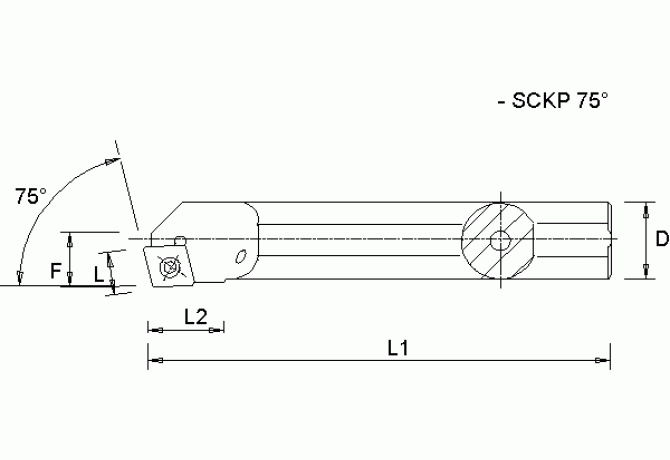

BORING BAR SCKP 75°

HAND Cutting direction

R - Right

HF Functional height

10.7 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

75 Degree

L Cutting edge length

6.6 mm

LH Head length

45 mm

LOC-03 B Shank width

20 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 H Shank height

18.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02002205

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

SCKPR0020K06

OAL Overall length

250 mm

WF Functional width

7.5 mm

WFA A dimension on wf

1.9 mm

Working process

No working processes available
