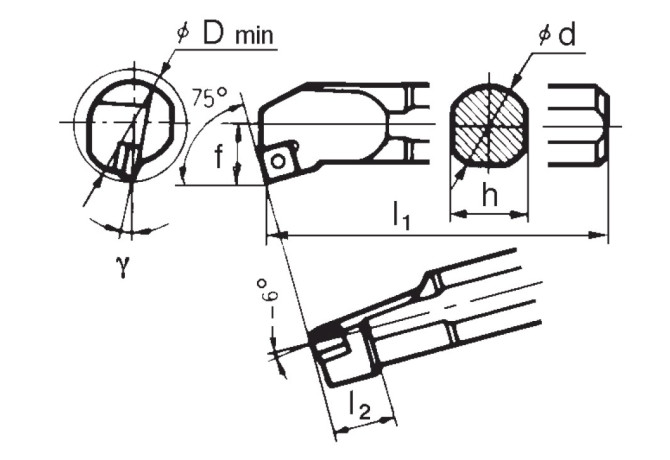

S50W - PSKN L 15

S50W - PSKN L 15 S50W - PSKN L 15

S50W - PSKN L 15

Sumitomo
Артикул: S50W - PSKN L 15
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
2
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/1/2021
DIN
ZYL05002205
DIN CSW1
SN1506 2N
DMIN Minimum bore diameter
63 mm
EPSR Insert included angle
90 Degree
FamilyProducts
P-type toolholder with clamping lever S-PSKN R/L
GAMF Rake angle radial
-10 Degree
HAND Cutting direction
L - Left
ID Technical product number
S50W - PSKN L 15
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
75 Degree
L Cutting edge length
15 mm
LAMS Inclination angle
-10 Degree
LH Head length
60 mm
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03 H Shank height
47 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL05002205
Name Identifying order number
S50W - PSKN L 15
OAL Overall length
450 mm
SX Shank cross section shape code
31 - (left) Round shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
35 mm
Working process
No working processes available
