Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning S40U PTFNR-22

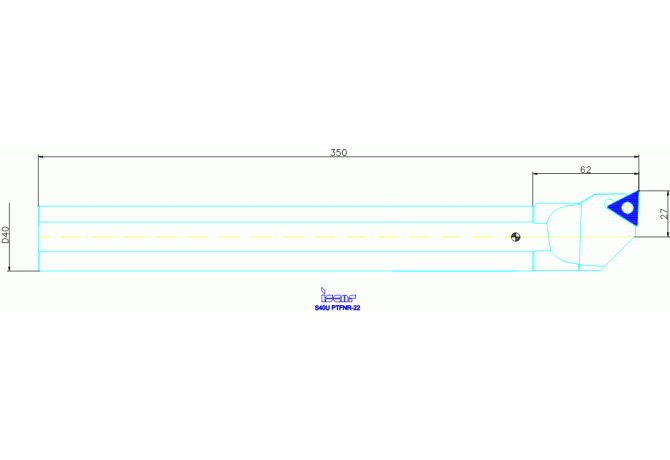

S40U PTFNR-22

Артикул: 3601117

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

ZYL04002205

DMIN Minimum bore diameter

49 mm

FamilyProducts

S40U PTFNR-22

HAND Cutting direction

R - Right

HF Functional height

18 mm

ID Technical product number

3601117

Interface codes

J6 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 H Shank height

36 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04002205

Name Identifying order number

S40U PTFNR-22

OAL Overall length

350 mm

STDNO Standard

S40U PTFNR-22

THSC Tool holder shape code

A - offset shank design

Working process

No working processes available
