Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning S40U PDUNR-15

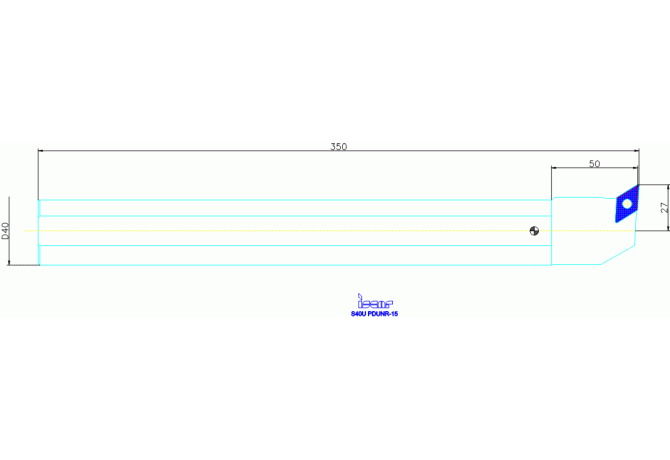

S40U PDUNR-15

S40U PDUNR-15

Iscar

Артикул: 3601115

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

6.35 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

ZYL04002215

DIN CSW1

DN1506 2N

DMIN Minimum bore diameter

50 mm

EPSR Insert included angle

55 Degree

FamilyProducts

S40U PDUNR-15

GAMO Rake angle orthogonal

-11.5 Degree

HAND Cutting direction

R - Right

HF Functional height

18 mm

ID Technical product number

3601115

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

15 mm

LF Functional length

350 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 H Shank height

36 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04002215

MIID Master insert identification

DNMG150608

Name Identifying order number

S40U PDUNR-15

OAL Overall length

350 mm

STDNO Standard

S40U PDUNR-15

THSC Tool holder shape code

A - offset shank design

WF Functional width

27 mm

Working process

No working processes available
