Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning S40TSSKCL12

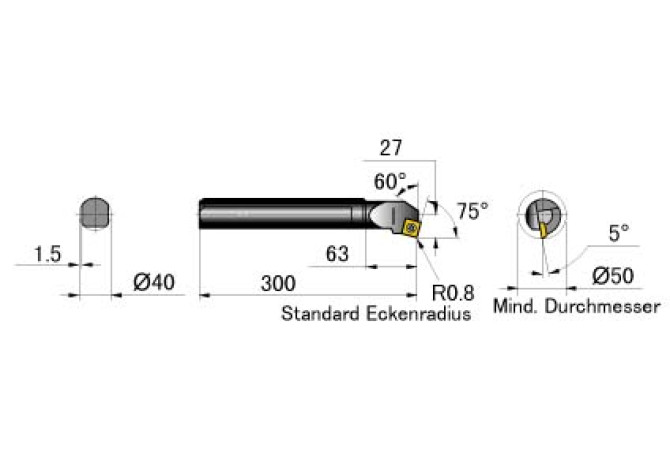

S40TSSKCL12

S40TSSKCL12

Mitsubishi Materials

Артикул: S40TSSKCL12

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

2

C1A Insert thickness Pos. A

4.76 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.8 mm

DCC Design configuration style code

S - Solid steel, no construction features

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL04002205

DIN CSW1

SC1204 3N

DMIN Minimum bore diameter

50 mm

EPSR Insert included angle

90 Degree

FamilyProducts

TOOL-HOLDER, INTERNAL

GAMF Rake angle radial

-5 Degree

GAMO Rake angle orthogonal

-5 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

L - Left

HF Functional height

18.5 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

75 Degree

L Cutting edge length

12.7 mm

LAMS Inclination angle

0 Degree

LF Functional length

300 mm

LH Head length

63 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 H Shank height

37 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04002205

MIID Master insert identification

SCMT120408

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

S40TSSKCL12

OAL Overall length

300 mm

STDDES Standard designation

S40T-SSKCL12

SX Shank cross section shape code

34 - F3 > F1 and F3 > F2 Round shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

27 mm

Working process

DDI - Internal turning
