Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning S32U - STFC L 16

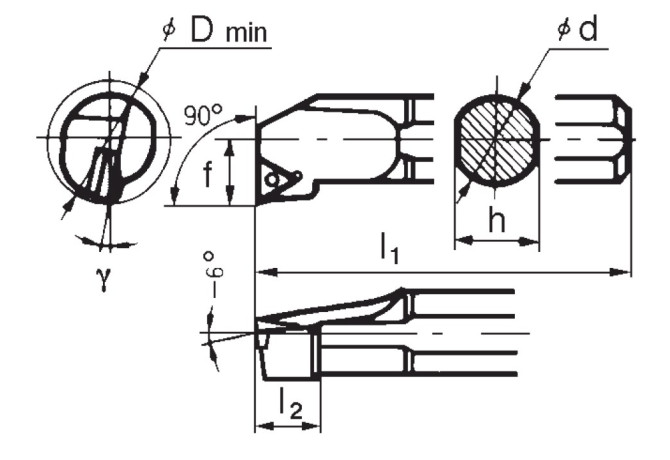

S32U - STFC L 16

S32U - STFC L 16

S32U - STFC L 16

S32U - STFC L 16

S32U - STFC L 16

Sumitomo

Артикул: S32U - STFC L 16

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

BLDA Tool style code Position A

1

C1A Insert thickness Pos. A

3.97 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/1/2021

DIN

ZYL03202205

DIN CSW1

TC16T3 3N

DMIN Minimum bore diameter

40 mm

EPSR Insert included angle

60 Degree

FamilyProducts

S-screw-on toolholder S-STFC R/L, steel shank

GAMF Rake angle radial

-10 Degree

HAND Cutting direction

L - Left

ID Technical product number

S32U - STFC L 16

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

90 Degree

L Cutting edge length

16 mm

LAMS Inclination angle

-10 Degree

LF Functional length

350 mm

LH Head length

20 mm

LOC-03 CCFMS Form

22

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 H Shank height

30 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03202205

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

S32U - STFC L 16

OAL Overall length

350 mm

SX Shank cross section shape code

22 - Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

22 mm

Working process

No working processes available
