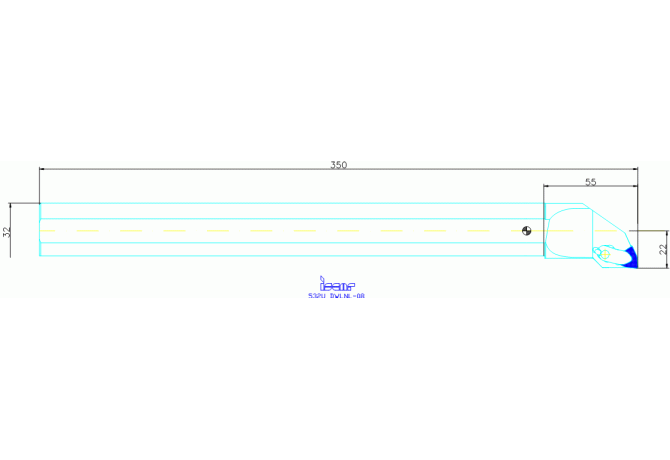

S32U DWLNL-08

Артикул: 3602569

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

ZYL03202205

DMIN Minimum bore diameter

40 mm

FamilyProducts

S32U DWLNL-08

HAND Cutting direction

L - Left

HF Functional height

15.8 mm

ID Technical product number

3602569

Interface codes

J6 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 H Shank height

29 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03202205

Name Identifying order number

S32U DWLNL-08

OAL Overall length

350 mm

STDNO Standard

S32U DWLNL-08

THSC Tool holder shape code

A - offset shank design

WF Functional width

22 mm

Working process

No working processes available
