Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning S32T CTFPR-16

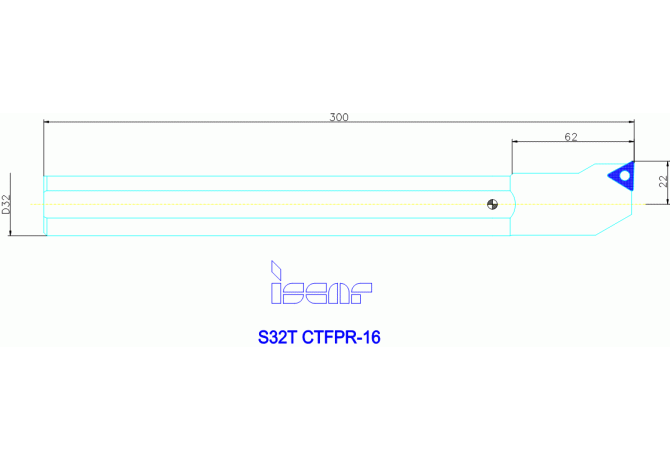

S32T CTFPR-16

Артикул: 3600191

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

ZYL03202205

DMIN Minimum bore diameter

40 mm

FamilyProducts

S32T CTFPR-16

HAND Cutting direction

R - Right

HF Functional height

14.5 mm

ID Technical product number

3600191

Interface codes

J6 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 H Shank height

29 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03202205

Name Identifying order number

S32T CTFPR-16

OAL Overall length

300 mm

STDNO Standard

S32T CTFPR-16

THSC Tool holder shape code

A - offset shank design

WF Functional width

22 mm

Working process

No working processes available
