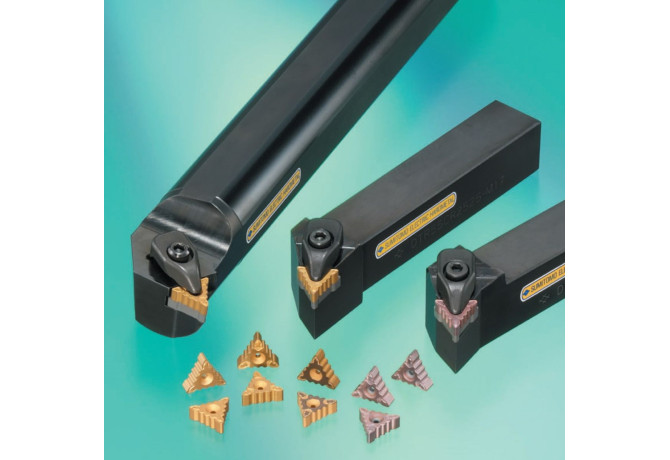

S32S-DTR55C R-17

S32S-DTR55C R-17 S32S-DTR55C R-17 S32S-DTR55C R-17

S32S-DTR55C R-17

Sumitomo
Артикул: S32S-DTR55C R-17
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/1/2021
DIN
ZYL03202205
DIN CSW1
SU-TRM55
DMIN Minimum bore diameter
44 mm
FamilyProducts
SumiTurn T-Rex boring bar for internal turning
HAND Cutting direction
R - Right
ID Technical product number
S32S-DTR55C R-17
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
LAMS Inclination angle
-12 Degree
LF Functional length
250 mm
LH Head length
40 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 H Shank height
30 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03202205
Name Identifying order number
S32S-DTR55C R-17
OAL Overall length
250 mm
THSC Tool holder shape code
G - straight shank design
WF Functional width
22 mm
WFA A dimension on wf
7 mm
Working process
No working processes available
