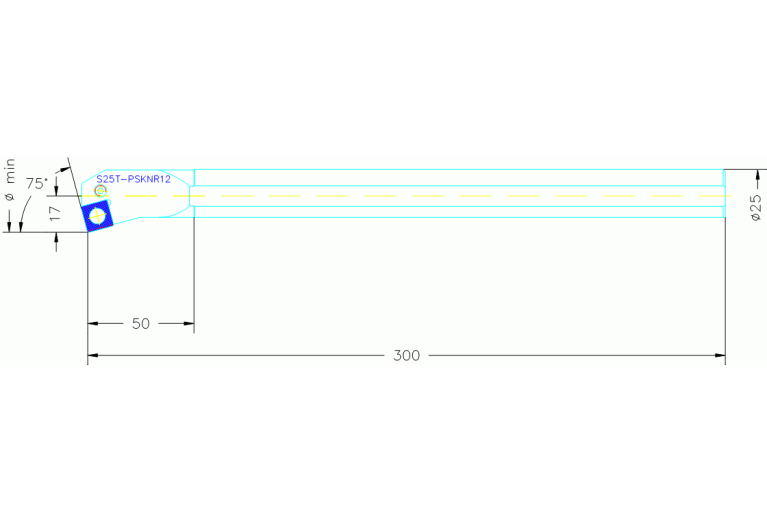

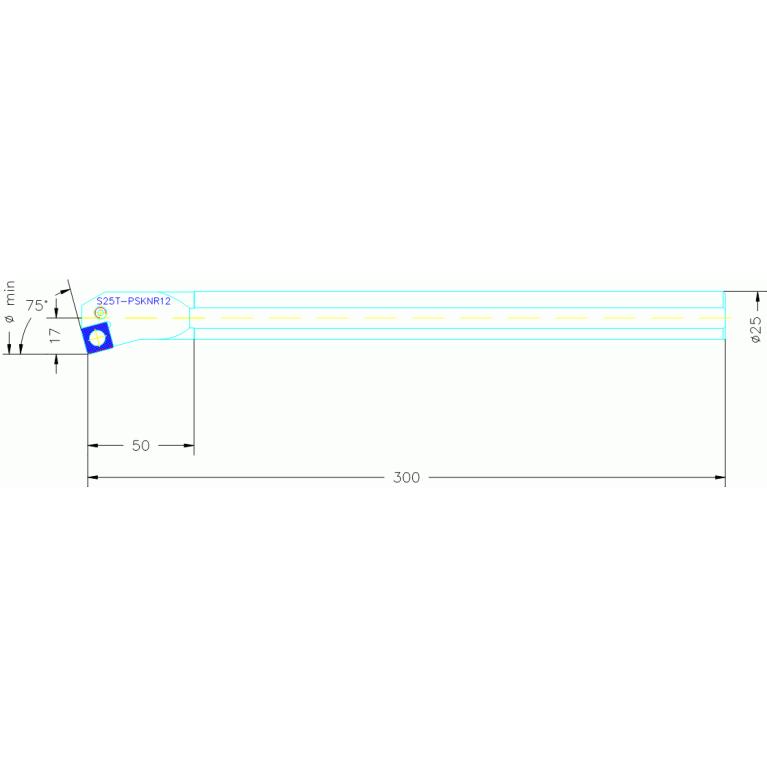

S25T-PSKNR12

S25T-PSKNR12 S25T-PSKNR12 S25T-PSKNR12

S25T-PSKNR12

Walter
Артикул: 5007991
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02502205
DMIN Minimum bore diameter
32 mm
EPSR Insert included angle
90 Degree
FamilyProducts

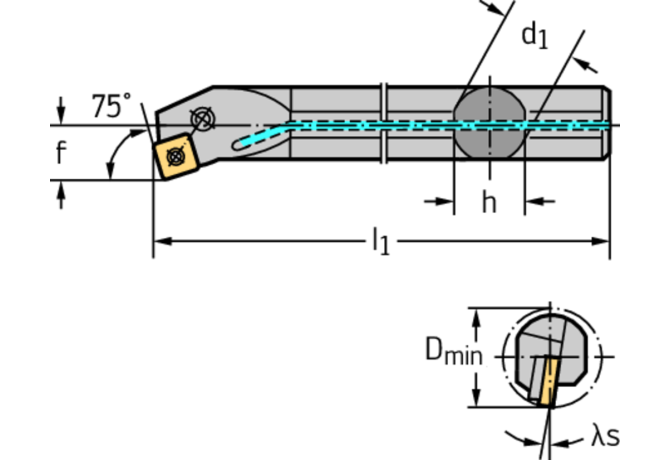

Boring bar – Lever clamping A...-PSKN
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
5007991
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISO
ZYL22G2500$$$$
ISO CSW1
ISO$SN1204002******
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
75 Degree
LAMS Inclination angle
-11 Degree
LF Functional length
300 mm
LFA A dimension on lf
3.1 mm
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 H Shank height
23 mm
LOC-03 ISO
ZYL22G2500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02502205
LPR Protruding length
50 mm
MIID Master insert identification
SNMG 432
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
S25T-PSKNR12
OAL Overall length
303.1 mm
WF Functional width
17 mm
Working process
No working processes available
WT Weight of item
0.7 kg
