Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning S25T - PCLN R 09

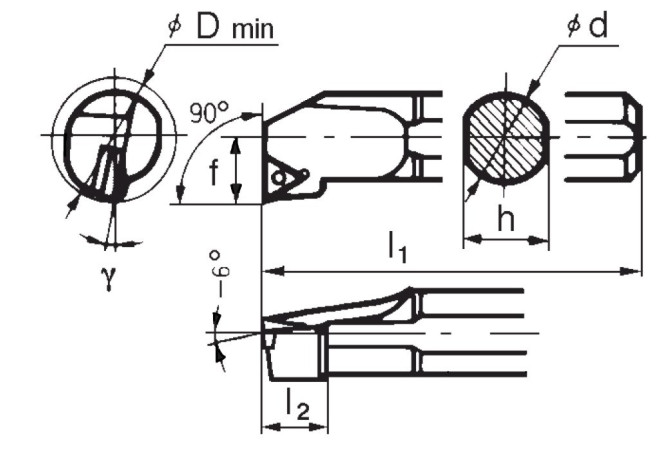

S25T - PCLN R 09

S25T - PCLN R 09

S25T - PCLN R 09

S25T - PCLN R 09

S25T - PCLN R 09

Sumitomo

Артикул: S25T - PCLN R 09

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

3

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/1/2021

DIN

ZYL02502215

DIN CSW1

CN0903 2N

DMIN Minimum bore diameter

30 mm

EPSR Insert included angle

80 Degree

FamilyProducts

P-type toolholder with clamping lever S-PCLN R/L

GAMF Rake angle radial

-10 Degree

HAND Cutting direction

R - Right

ID Technical product number

S25T - PCLN R 09

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

L Cutting edge length

9 mm

LAMS Inclination angle

-10 Degree

LF Functional length

300 mm

LH Head length

33 mm

LOC-03 CCFMS Form

22

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 H Shank height

23 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02502215

Name Identifying order number

S25T - PCLN R 09

OAL Overall length

300 mm

SX Shank cross section shape code

31 - (left) Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

17 mm

Working process

No working processes available
