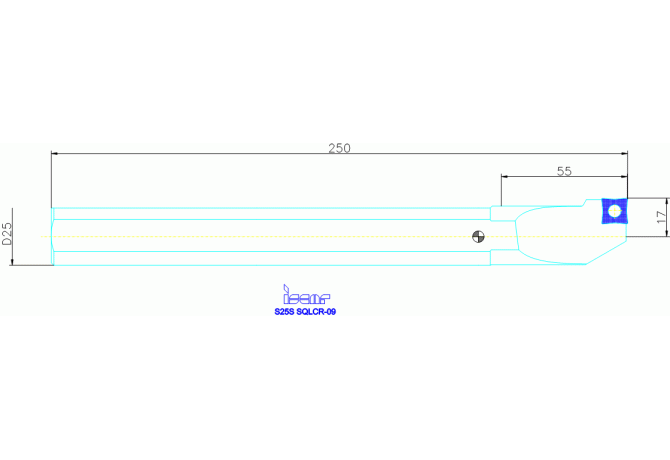

S25S SQLCR-09

Артикул: 3601577

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

ZYL02502205

DIN CSW1

QC09T3043N

DMIN Minimum bore diameter

32 mm

FamilyProducts

S25S SQLCR-09

HAND Cutting direction

R - Right

HF Functional height

7.5 mm

ID Technical product number

3601577

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 H Shank height

15 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02502205

MIID Master insert identification

QCMT09T304

Name Identifying order number

S25S SQLCR-09

OAL Overall length

250 mm

STDNO Standard

S25S SQLCR-09

THSC Tool holder shape code

A - offset shank design

Working process

No working processes available
