Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning S20RSCLPR09

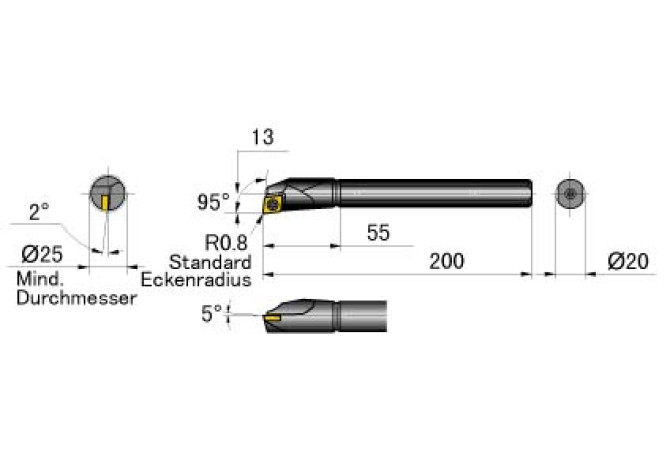

S20RSCLPR09

S20RSCLPR09 S20RSCLPR09

S20RSCLPR09

Mitsubishi Materials
Артикул: S20RSCLPR09
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
11 Degree
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
DCC Design configuration style code
S - Solid steel, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL02002205
DIN CSW1
CP0903 3N
DMIN Minimum bore diameter
25 mm
EPSR Insert included angle
80 Degree
FamilyProducts
TOOL-HOLDER, INTERNAL
GAMF Rake angle radial
0 Degree
GAMO Rake angle orthogonal
2 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
9.671 mm
LF Functional length
200 mm
LH Head length
55 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02002205
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
S20RSCLPR09
OAL Overall length
200 mm
STDDES Standard designation
S20R-SCLPR09
SX Shank cross section shape code
21 - Round shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
13 mm
Working process
DDI - Internal turning
