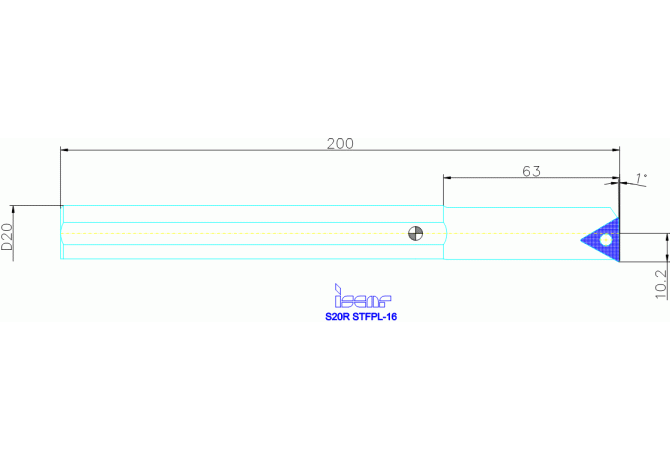

S20R STFPL-16

S20R STFPL-16 S20R STFPL-16

S20R STFPL-16

Iscar
Артикул: 3601011
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
11 Degree
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
1
C1A Insert thickness Pos. A
3.18 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
D1A Corner radius Pos. A
0.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
ZYL02002215
DIN CSW1
TP1603 3N
DMIN Minimum bore diameter
21.5 mm
EPSR Insert included angle
60 Degree
FamilyProducts
S20R STFPL-16
HAND Cutting direction
L - Left
HF Functional height
10 mm
ID Technical product number
3601011
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree
LF Functional length
200 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03 H Shank height
18 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02002215
MIID Master insert identification
TPMT160304
Name Identifying order number
S20R STFPL-16
OAL Overall length
200 mm
STDNO Standard
S20R STFPL-16
SX Shank cross section shape code
31 - (left) Round shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
10.2 mm
Working process
No working processes available
