Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning S20QSTFCL16

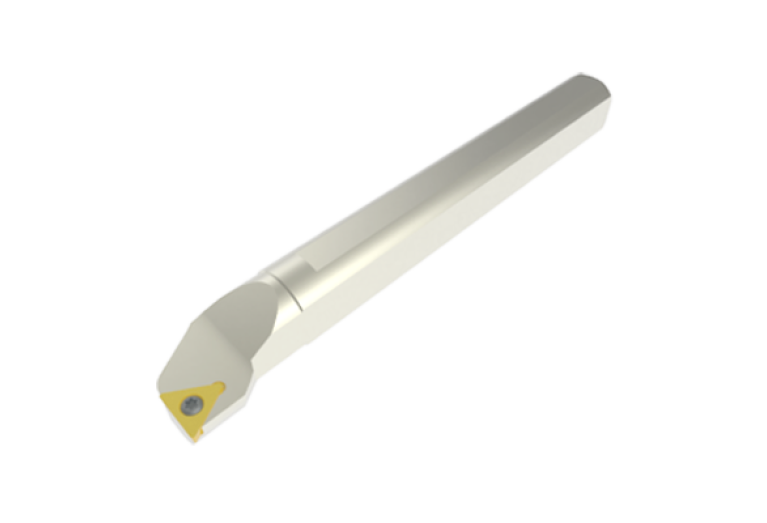

S20QSTFCL16

S20QSTFCL16

Mitsubishi Materials

Артикул: S20QSTFCL16

В наличии

В корзину

Описание

Характеристики

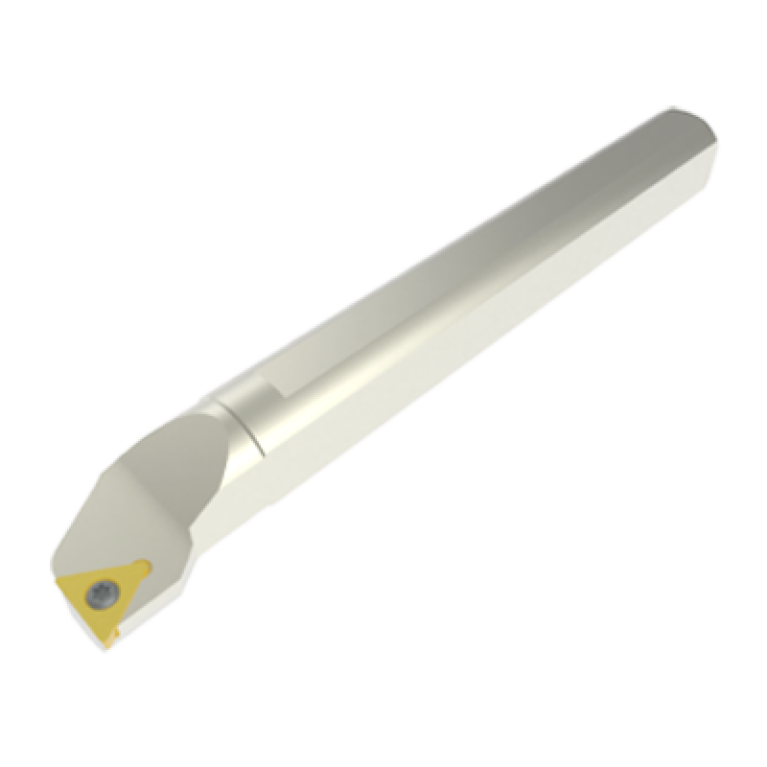

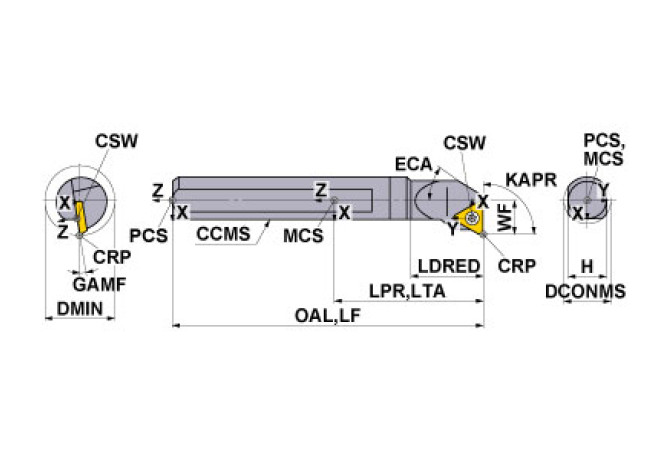

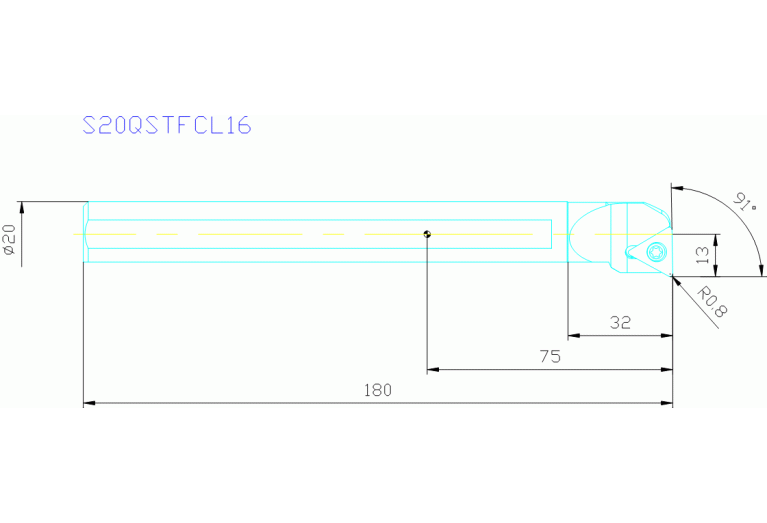

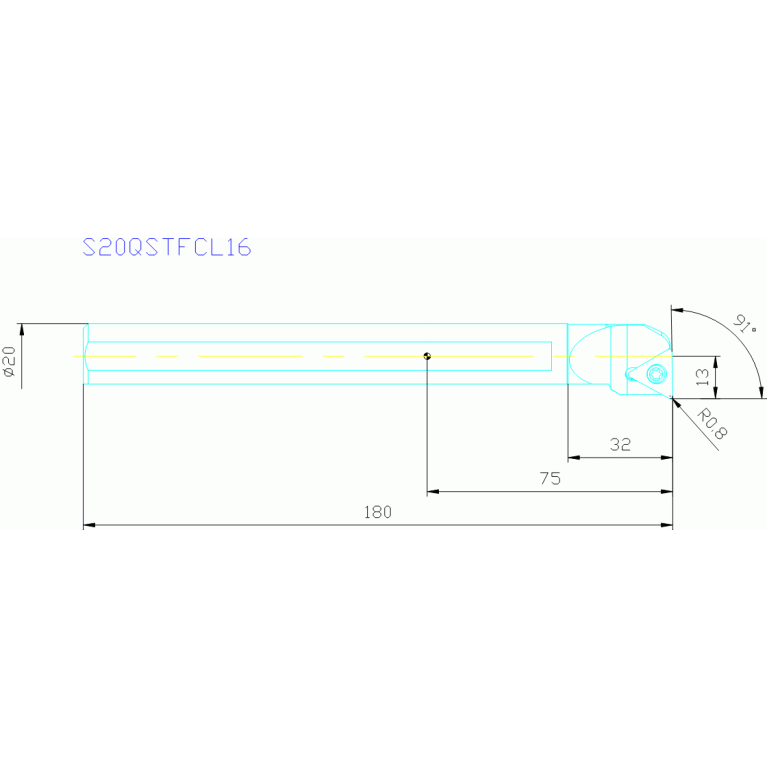

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

1

C1A Insert thickness Pos. A

3.97 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL02002205

DIN CSW1

TC16T3083N

DMIN Minimum bore diameter

25 mm

EPSR Insert included angle

60 Degree

FamilyProducts

S Type Boring Bar

GAMF Rake angle radial

7 Degree

GAMO Rake angle orthogonal

7 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

L - Left

HF Functional height

10 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

91 Degree

L Cutting edge length

16.49 mm

LF Functional length

180 mm

LH Head length

32 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 H Shank height

18 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02002205

MIID Master insert identification

TCMT16T308

Name Identifying order number

S20QSTFCL16

OAL Overall length

180 mm

STDDES Standard designation

S20QSTFCL16

SX Shank cross section shape code

34 - F3 > F1 and F3 > F2 Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

13 mm

Working process

DDI - Internal turning
