Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning S16Q STFPL-11

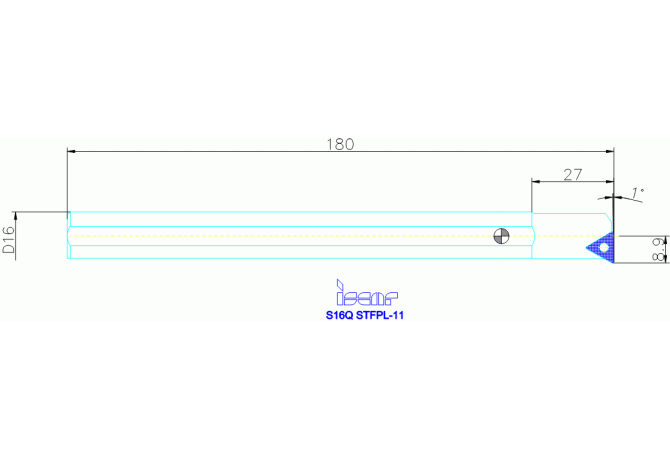

S16Q STFPL-11

S16Q STFPL-11

Iscar

Артикул: 3601010

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

11 Degree

B3A Inscribed circle diameter Pos. A

6.35 mm

BLDA Tool style code Position A

1

C1A Insert thickness Pos. A

2.38 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

0.4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

ZYL01602215

DIN CSW1

TP1102043N

DMIN Minimum bore diameter

18 mm

EPSR Insert included angle

60 Degree

FamilyProducts

S16Q STFPL-11

HAND Cutting direction

L - Left

HF Functional height

8 mm

ID Technical product number

3601010

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

90 Degree

LF Functional length

180 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 H Shank height

15 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01602215

MIID Master insert identification

TPG.110204

Name Identifying order number

S16Q STFPL-11

OAL Overall length

180 mm

STDNO Standard

S16Q STFPL-11

SX Shank cross section shape code

31 - (left) Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

9.2 mm

Working process

No working processes available
