Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning S16M-CBLPR08

S16M-CBLPR08

Артикул: S16M-CBLPR08

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

KH - Kennametal

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DMIN Minimum bore diameter

20 mm

FamilyProducts

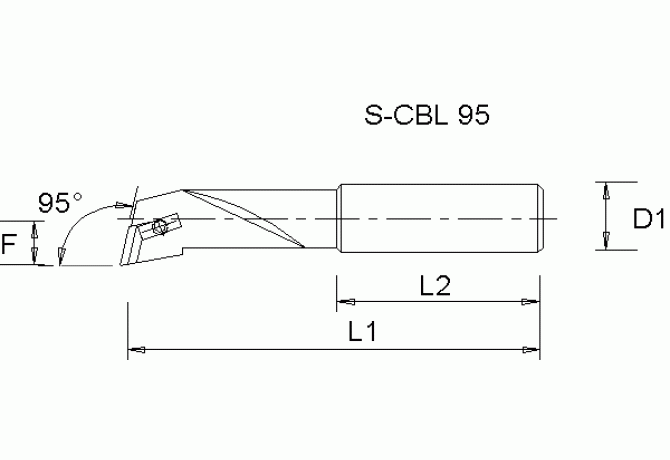

BORING BAR CBLP 95°

HAND Cutting direction

R - Right

Interface codes

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

L Cutting edge length

8 mm

LH Head length

35 mm

LOC-03 B Shank width

16 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

S16M-CBLPR08

OAL Overall length

150 mm

WF Functional width

11 mm

Working process

No working processes available
