Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning S12Q SCLCL 06

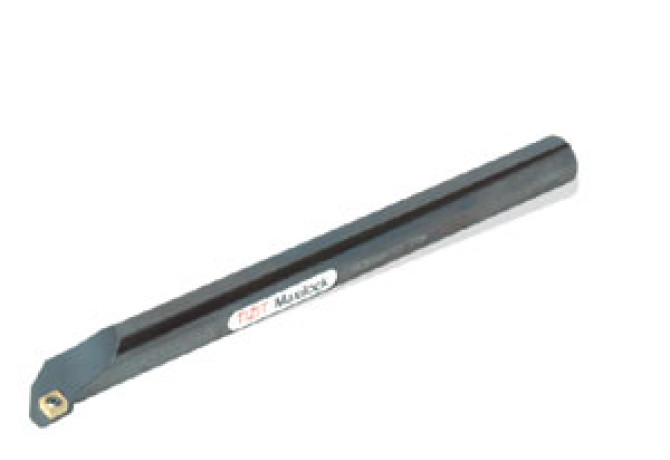

S12Q SCLCL 06

S12Q SCLCL 06 S12Q SCLCL 06

S12Q SCLCL 06

Ceratizit
Артикул: S12Q SCLCL 06
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
CE - Ceratizit
CXSC Coolant exit style code
0 - Without coolant exit
DCC Design configuration style code
S - Solid steel, no construction features
DCP Data chip provision
0 - Without data chip
DHD Drop head design
0 - Normal
DIN
ZYL01202205
DIN CSW1
CC0602 3N
DMIN Minimum bore diameter
16 mm
EPSR Insert included angle
80 Degree
FamilyProducts
Maxilock S internal turning tool
HAND Cutting direction
L - Left
HF Functional height
6 mm
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
6.4 mm
LH Head length
10 mm
LOC-03 B Shank width
11.5 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03 H Shank height
11 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01202205
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
S12Q SCLCL 06
OAL Overall length
180 mm
STDDES Standard designation
S12Q-SCLCL06
SX Shank cross section shape code
31 - (left) Round shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
9 mm
Working process
DDI - Internal turning
