Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning S12MSTFPR11

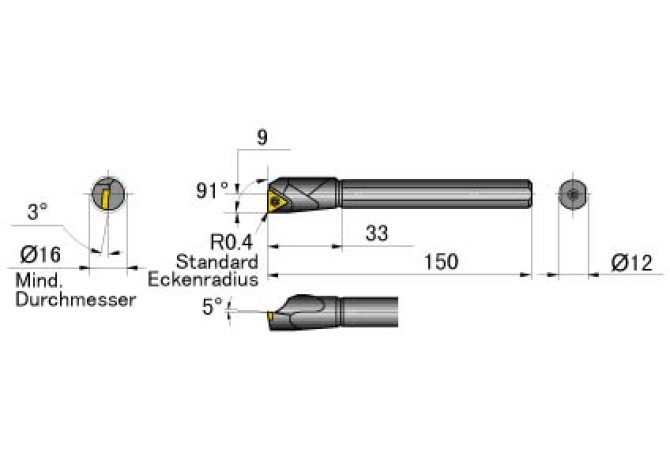

S12MSTFPR11

S12MSTFPR11 S12MSTFPR11

S12MSTFPR11

Mitsubishi Materials
Артикул: S12MSTFPR11
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
DCC Design configuration style code
S - Solid steel, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL01202205
DIN CSW1
MI-T00700
DMIN Minimum bore diameter
16 mm
EPSR Insert included angle
60 Degree
FamilyProducts
TOOL-HOLDER, INTERNAL
GAMF Rake angle radial
5 Degree
GAMO Rake angle orthogonal
3 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree
L Cutting edge length
10.998 mm
LF Functional length
150 mm
LH Head length
33 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01202205
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
S12MSTFPR11
OAL Overall length
150 mm
STDDES Standard designation
S12M-STFPR11
SX Shank cross section shape code
21 - Round shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
9 mm
Working process
DDI - Internal turning
