S10K-SDUCL07

S10K-SDUCL07 S10K-SDUCL07

S10K-SDUCL07

Kennametal
Артикул: S10K-SDUCL07
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DCC Design configuration style code
S - Solid steel, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
ZYL01002205
DMIN Minimum bore diameter
13 mm
EPSR Insert included angle
55 Degree
FamilyProducts

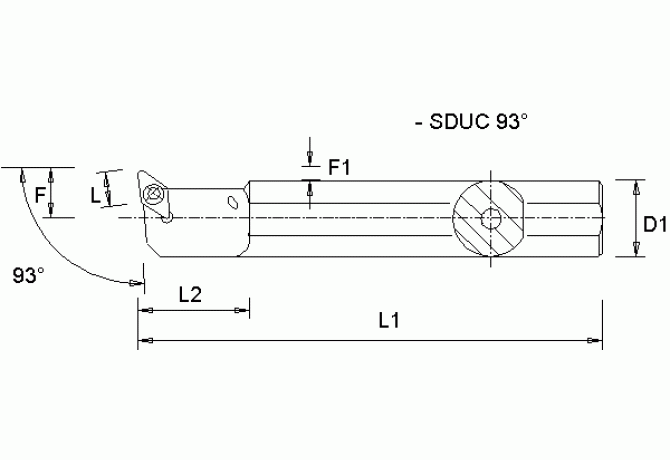

BORING BAR SDUC 93°
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
L - Left
HF Functional height
4.6 mm
Interface codes
J6 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
7.75 mm
LAMS Inclination angle
-10 Degree
LF Functional length
2.5 mm
LH Head length
22 mm
LOC-03 B Shank width
10 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03 H Shank height
9 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01002205
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
S10K-SDUCL07
OAL Overall length
125 mm
STDDES Standard designation
S10K-SDUCL07
SX Shank cross section shape code
41 - Round shank
WF Functional width
7 mm
Working process
No working processes available
