Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning S08HSTFPL09

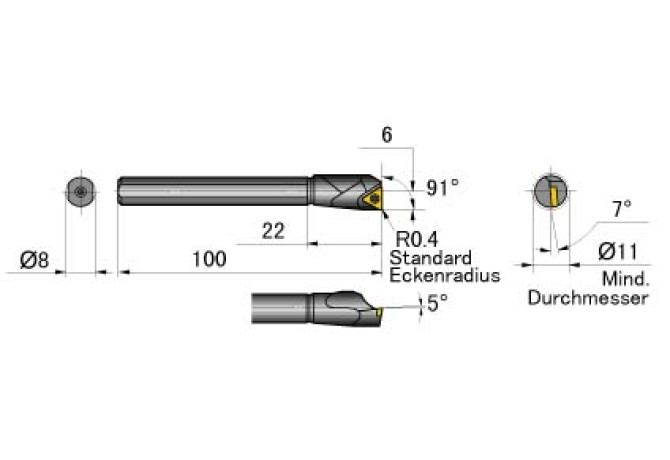

S08HSTFPL09

S08HSTFPL09

Mitsubishi Materials

Артикул: S08HSTFPL09

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

11 Degree

B3A Inscribed circle diameter Pos. A

5.56 mm

BLDA Tool style code Position A

1

C1A Insert thickness Pos. A

2.38 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.4 mm

DCC Design configuration style code

S - Solid steel, no construction features

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL00802205

DIN CSW1

TP0902 3N

DMIN Minimum bore diameter

11 mm

EPSR Insert included angle

60 Degree

FamilyProducts

TOOL-HOLDER, INTERNAL

GAMF Rake angle radial

5 Degree

GAMO Rake angle orthogonal

7 Degree

HAND Cutting direction

L - Left

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

90 Degree

L Cutting edge length

9.63 mm

LF Functional length

100 mm

LH Head length

22 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00802205

MIID Master insert identification

TPGB0902

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

S08HSTFPL09

OAL Overall length

100 mm

STDDES Standard designation

S08H-STFPL09

SX Shank cross section shape code

21 - Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

6 mm

Working process

DDI - Internal turning
