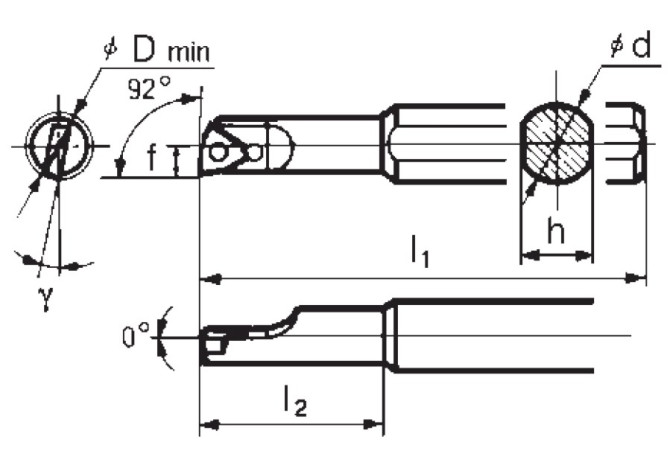

S08H - SWUB L 06

S08H - SWUB L 06 S08H - SWUB L 06

S08H - SWUB L 06

Sumitomo
Артикул: S08H - SWUB L 06
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
5 Degree
BLDA Tool style code Position A
7
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/1/2005
DIN
ZYL00802205
DIN CSW1
WB0601 3R
DMIN Minimum bore diameter
5.5 mm
EPSR Insert included angle
80 Degree
FamilyProducts
S-screw-on toolholder S-SWUB R/L, steel shank
GAMF Rake angle radial
-12 Degree
HAND Cutting direction
L - Left
ID Technical product number
S08H - SWUB L 06
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
92 Degree
L Cutting edge length
6 mm
LAMS Inclination angle
-12 Degree
LF Functional length
100 mm
LH Head length
18 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 H Shank height
7 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802205
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
S08H - SWUB L 06
OAL Overall length
100 mm
SX Shank cross section shape code
22 - Round shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
3 mm
Working process
No working processes available
