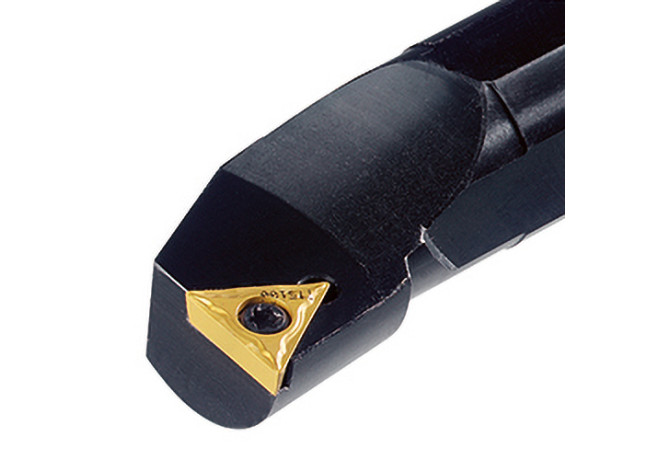

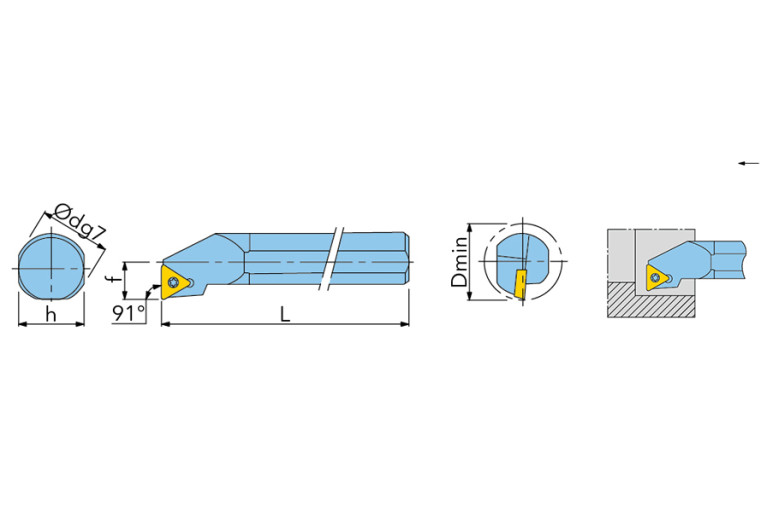

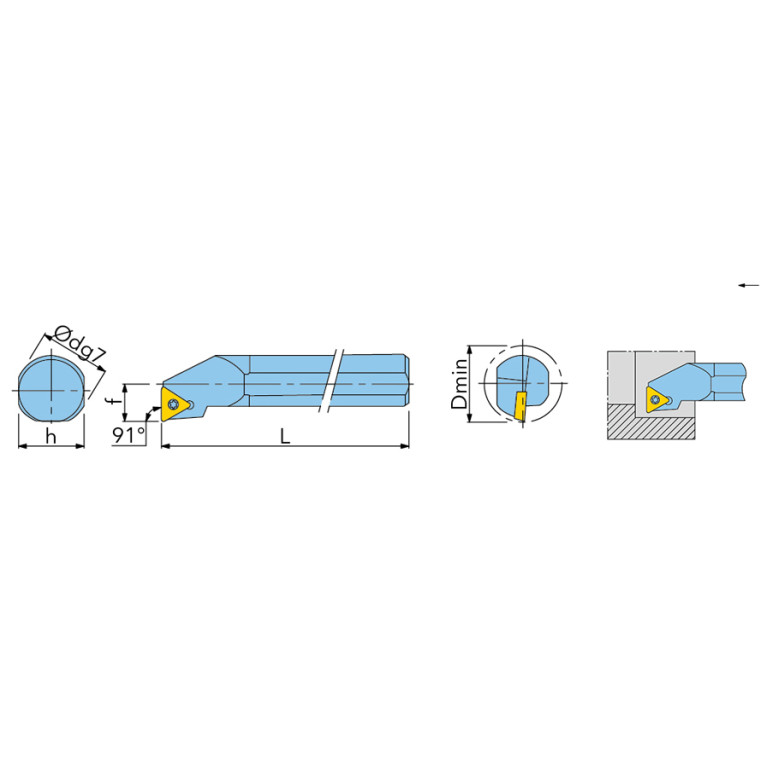

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning S06H STFCL 06T1

S06H STFCL 06T1

S06H STFCL 06T1 S06H STFCL 06T1 S06H STFCL 06T1 S06H STFCL 06T1

S06H STFCL 06T1

Ingersoll
Артикул: 3607117
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
BLDA Tool style code Position A
1
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.2 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LL - Stock limited
DIN
ZYL00602205
DIN CSW1
TC06T1023N
EPSR Insert included angle
60 Degree
FamilyProducts
S-STFCR/L
HAND Cutting direction
L - Left
ID Technical product number
3607117
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree

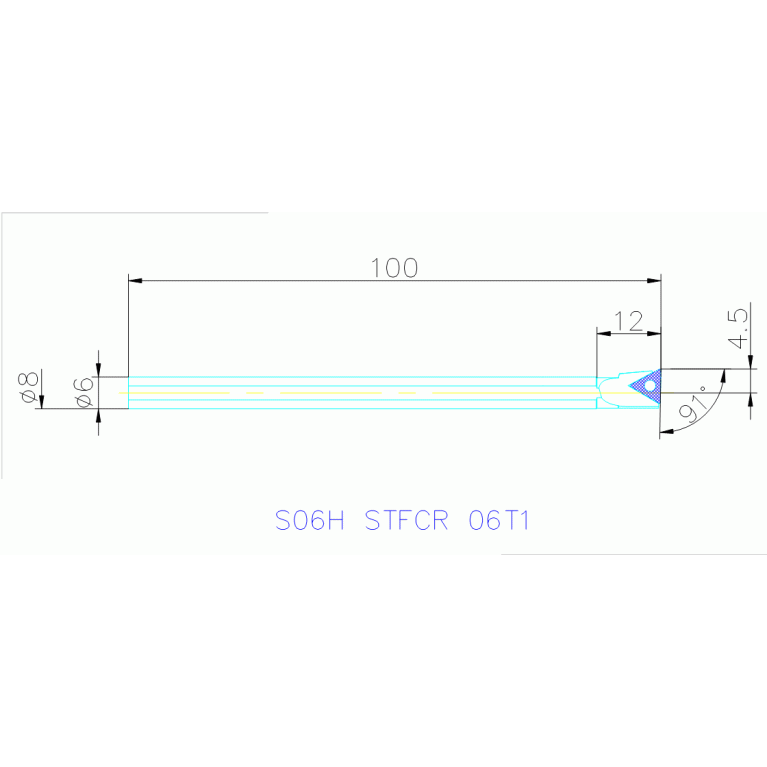

LF Functional length
100 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03 H Shank height
5.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00602205
MIID Master insert identification
TC 06T1
Name Identifying order number
S06H STFCL 06T1
OAL Overall length
100 mm
STDDES Standard designation
S06H STFCL 06T1
THSC Tool holder shape code
A - offset shank design
WF Functional width
4.5 mm
Working process
No working processes available
WT Weight of item
0.02 kg
