Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning PWLNR3232P10

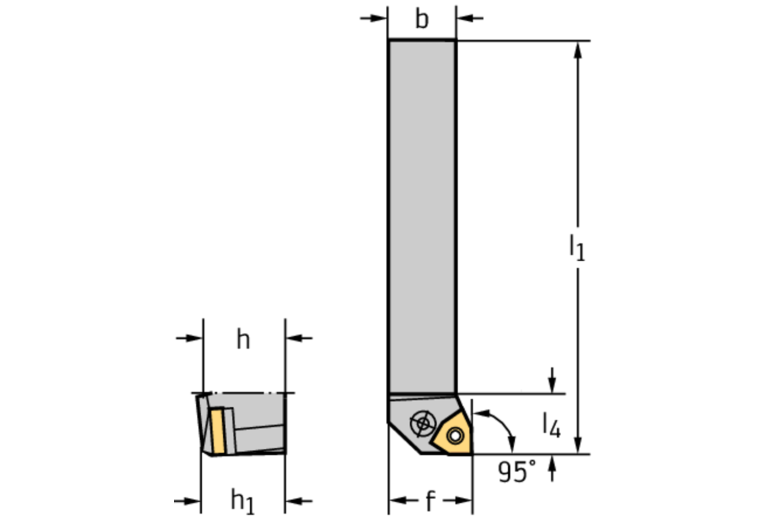

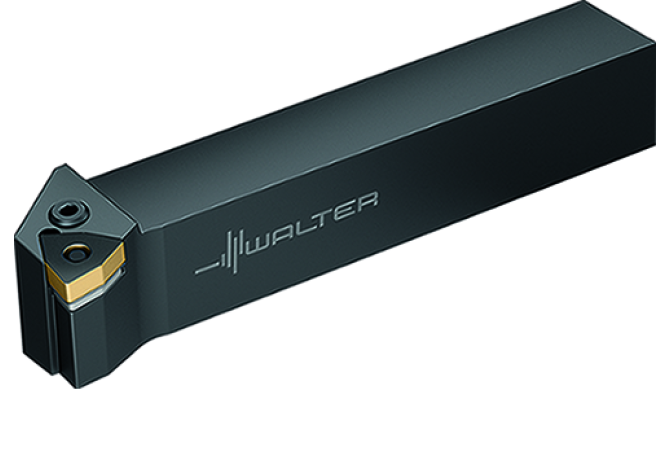

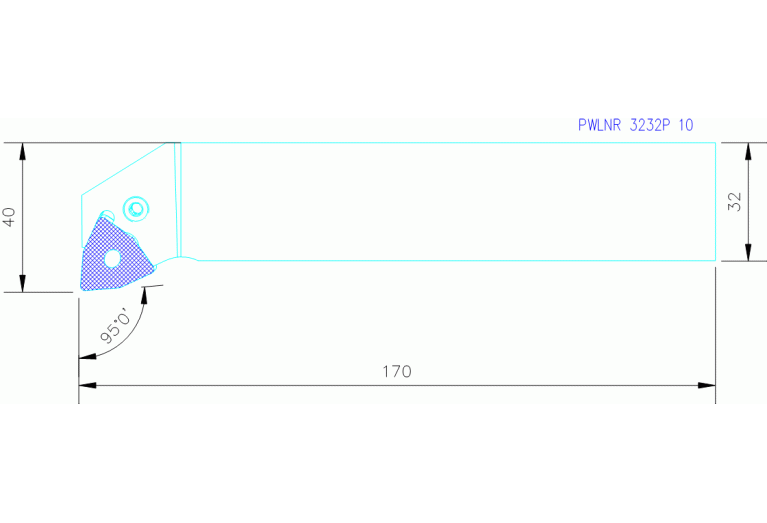

PWLNR3232P10

PWLNR3232P10 PWLNR3232P10 PWLNR3232P10 PWLNR3232P10

PWLNR3232P10

Walter
Артикул: 5008015
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT32320105
EPSR Insert included angle
80 Degree
FamilyProducts
Shank tool – Lever clamping PWLN
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
R - Right
HF Functional height
32 mm
ID Technical product number
5008015
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISO
VKT01A3232$$$$
ISO CSW1
ISO$WN1006002******
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
LAMS Inclination angle
-6 Degree
LF Functional length
170 mm
LOC-03 B Shank width
32 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
3232
LOC-03 H Shank height
32 mm
LOC-03 ISO
VKT01A3232$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT32320105
LPR Protruding length
24 mm
MIID Master insert identification
WNMG 543
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
PWLNR3232P10
OAL Overall length
170 mm
WF Functional width
40 mm
Working process
No working processes available
WT Weight of item
1.41 kg
