Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning PTFNL1212F11

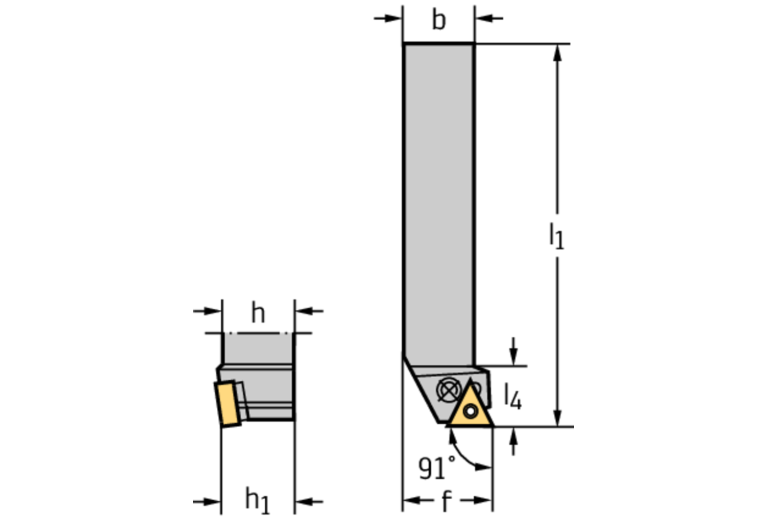

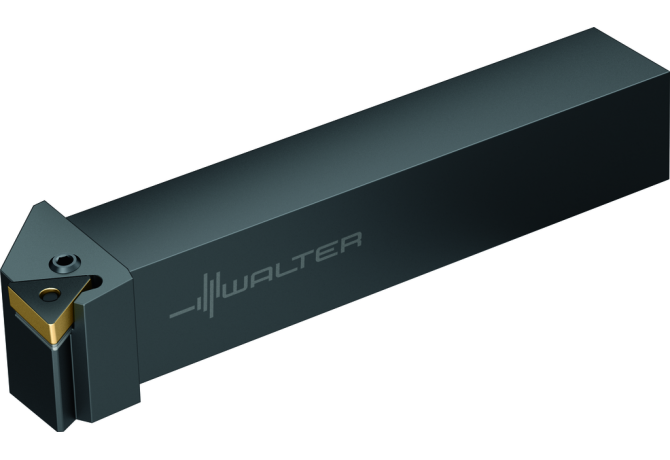

PTFNL1212F11

PTFNL1212F11

Walter

Артикул: 6047396

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

1

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

VKT12120105

DIN CSW1

TN1103992N

EPSR Insert included angle

60 Degree

FamilyProducts

Shank tool – Lever clamping PTFN

GAMO Rake angle orthogonal

-6 Degree

HAND Cutting direction

L - Left

HF Functional height

12 mm

ID Technical product number

6047396

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

1

ISO

VKT01A1212$$$$

ISO CSW1

ISO$TN1103002******

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

91 Degree

L Cutting edge length

11 mm

LAMS Inclination angle

-6 Degree

LF Functional length

80 mm

LOC-03 B Shank width

12 mm

LOC-03 CCFMS Form

01

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

1212

LOC-03 H Shank height

12 mm

LOC-03 ISO

VKT01A1212$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT12120105

LPR Protruding length

80 mm

MIID Master insert identification

TNMG 11 03 04

MTP Clamping type code

P - Hole clamping, with straight bore

Name Identifying order number

PTFNL1212F11

OAL Overall length

80 mm

WF Functional width

16 mm

Working process

DDA - External turning

WT Weight of item

0.105 kg
