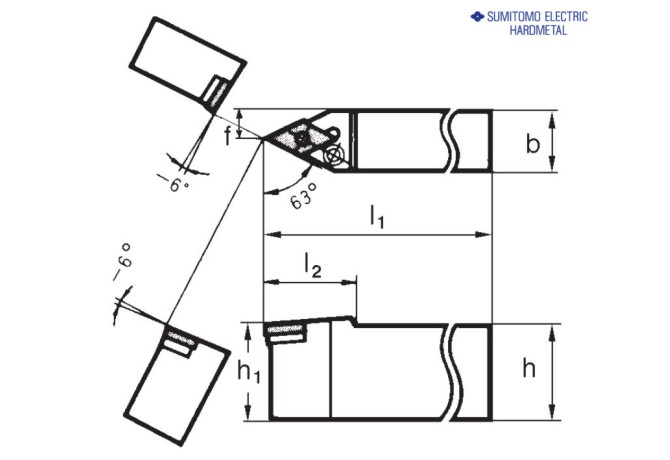

PDNN R 5032 P15

PDNN R 5032 P15 PDNN R 5032 P15

PDNN R 5032 P15

Sumitomo
Артикул: PDNN R 5032 P15
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
4.76 mm
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/1/2021
DIN
VKT50320105
DIN CSW1
DN1506 2N
EPSR Insert included angle
55 Degree
FamilyProducts
P-type toolholder PDNNR/L
GAMF Rake angle radial
-6 Degree
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
R - Right
HF Functional height
50 mm
ID Technical product number
PDNN R 5032 P15
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
62.5 Degree
L Cutting edge length
15 mm
LAMS Inclination angle
-6 Degree
LF Functional length
170 mm
LH Head length
36.5 mm
LOC-03 B Shank width
32 mm
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 H Shank height
50 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT50320105
Name Identifying order number
PDNN R 5032 P15
OAL Overall length
170 mm
SX Shank cross section shape code
02 - Square shank
THSC Tool holder shape code
G - straight shank design
WF Functional width
16.8 mm
Working process
No working processes available
