Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning PDACL 1012M-11S

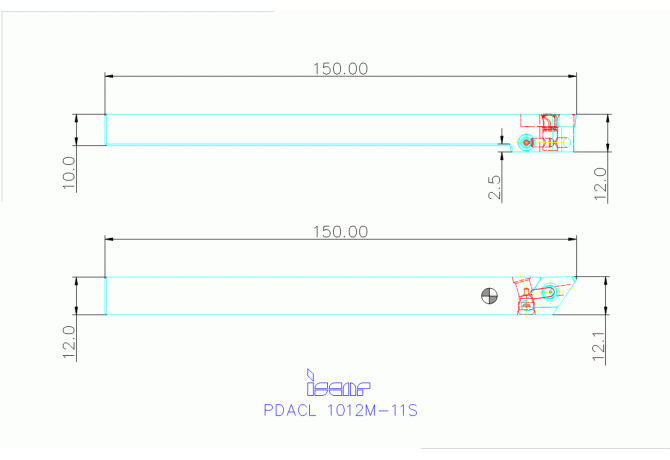

PDACL 1012M-11S

PDACL 1012M-11S PDACL 1012M-11S

PDACL 1012M-11S

Iscar
Артикул: 3602197
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
3.97 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
VKT12100105
DIN CSW1
DC11T3 3N
EPSR Insert included angle
55 Degree
FamilyProducts
PDACL 1012M-11S
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
L - Left
ID Technical product number
3602197
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree
LOC-03 B Shank width
12 mm
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 H Shank height
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT12100105
MIID Master insert identification
DCMT11T304
Name Identifying order number
PDACL 1012M-11S
OAL Overall length
150 mm
STDNO Standard
PDACL1012M11S
THSC Tool holder shape code
G - straight shank design
WF Functional width
12 mm
Working process
No working processes available
