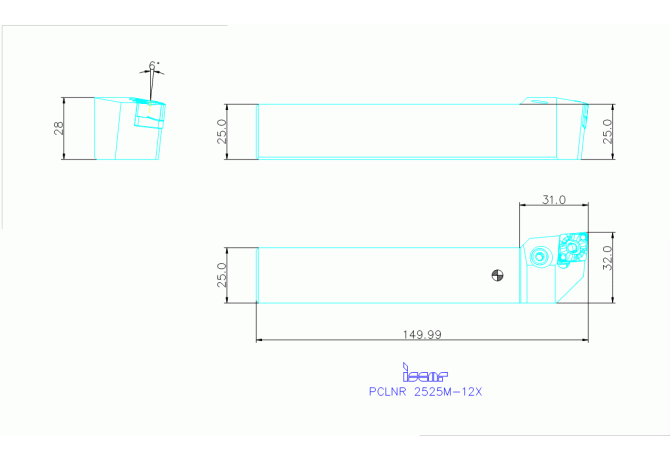

PCLNR 2525M-12X

Артикул: 3602694

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

VKT25250105

FamilyProducts

PCLNR 2525M-12X

HAND Cutting direction

R - Right

ID Technical product number

3602694

Interface codes

J6 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LH Head length

31 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

2525

LOC-03 H Shank height

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT25250105

Name Identifying order number

PCLNR 2525M-12X

OAL Overall length

150 mm

STDNO Standard

PCLNR2525M12X

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

A - offset shank design

Working process

No working processes available
