Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning PCLCR 1616K-09S-JHP

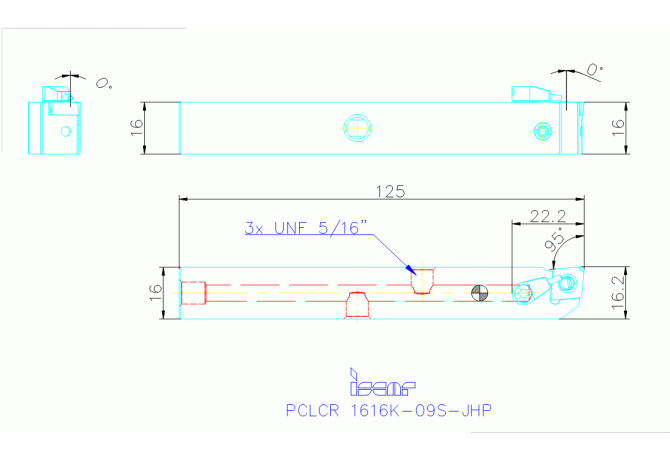

PCLCR 1616K-09S-JHP

PCLCR 1616K-09S-JHP

PCLCR 1616K-09S-JHP

PCLCR 1616K-09S-JHP

PCLCR 1616K-09S-JHP

Iscar

Артикул: 3603112

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

CEATC Tool cutting edge angle type code

B - Side and front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

8/7/2014

DIN

VKT16160115

EPSR Insert included angle

80 Degree

FamilyProducts

Lever Lock Tools with Channels for H P Coolant

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

HF Functional height

16 mm

ID Technical product number

3603112

Interface codes

J6 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

L Cutting edge length

9 mm

LF Functional length

125 mm

LH Head length

23 mm

LOC-03 B Shank width

16 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

1616

LOC-03 H Shank height

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT16160115

MIID Master insert identification

CC.. 09T3

Name Identifying order number

PCLCR 1616K-09S-JHP

OAL Overall length

125 mm

STDNO Standard

PCLCR 1616K-09S

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

16.2 mm

Working process

No working processes available
