Главная Каталог продукции СЗЦПК инструмент 14 309-01 - Tool holder for longitudinal and transversal turning MTGNR2525M16C

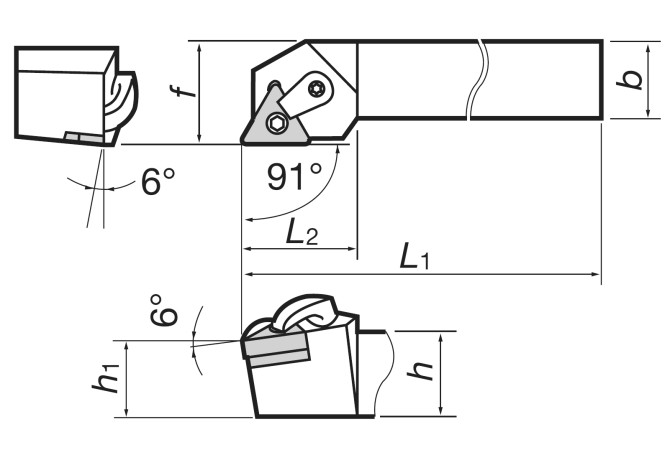

MTGNR2525M16C

MTGNR2525M16C MTGNR2525M16C

MTGNR2525M16C

Tungaloy
Артикул: MTGNR2525M16C
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
9.52 mm
BLDA Tool style code Position A
1
C1A Insert thickness Pos. A
7.94 mm
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
TT - Tungaloy
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
9/27/2012
DIN
VKT25250105
DIN CSW1
TN1607 1N
EPSR Insert included angle
60 Degree
FamilyProducts
TAC external toolholder M type MTGNR/L
GAMF Rake angle radial
-6 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
R - Right
HF Functional height
25 mm
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
91 Degree
LF Functional length
150 mm
LH Head length
28 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
2525
LOC-03 H Shank height
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250105
MTP Clamping type code
M - Top and hole clamping, with cylindrical bore
Name Identifying order number
MTGNR2525M16C
OAL Overall length
150 mm
STDDES Standard designation
MTGNR2525M16C
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
32 mm
Working process
DDA - External turning
