Главная Каталог продукции СЗЦПК инструмент 14 309-01 - Tool holder for longitudinal and transversal turning MTENN 1618H-16W-M

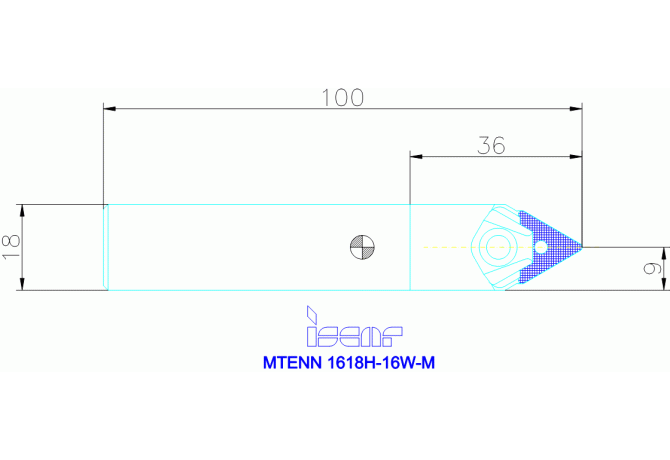

MTENN 1618H-16W-M

Артикул: 3600465

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2014

DIN

VKT18160105

FamilyProducts

MTENN 1618H-16W-M

HAND Cutting direction

N - Neutral

ID Technical product number

3600465

Interface codes

J6 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

LH Head length

32 mm

LOC-03 B Shank width

18 mm

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 H Shank height

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT18160105

Name Identifying order number

MTENN 1618H-16W-M

OAL Overall length

100 mm

STDNO Standard

MTENN1618H16WM

THSC Tool holder shape code

G - straight shank design

WF Functional width

8 mm

Working process

No working processes available
