Главная Каталог продукции СЗЦПК инструмент 14 309-01 - Tool holder for longitudinal and transversal turning JSVL2PL1616K08

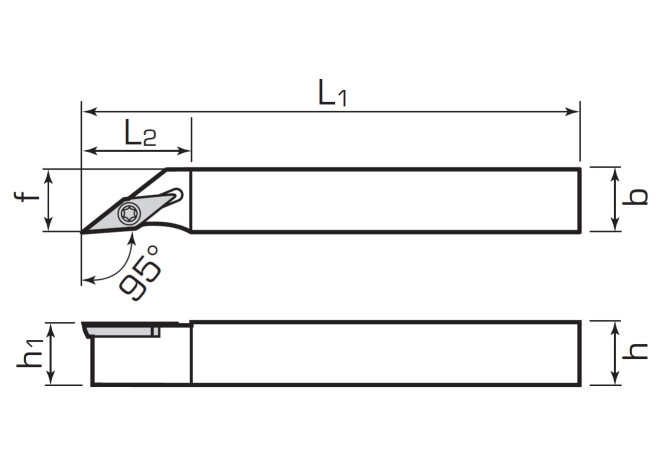

JSVL2PL1616K08

JSVL2PL1616K08 JSVL2PL1616K08

JSVL2PL1616K08

Tungaloy
Артикул: 6864512
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
11 Degree
BLDA Tool style code Position A
3
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
TT - Tungaloy
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.2 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
8/8/2014
DIN
VKT16160105
DIN CSW1
VP0802 3R
EPSR Insert included angle
95 Degree
FamilyProducts
turnholder, external
GAMF Rake angle radial
0 Degree
GAMO Rake angle orthogonal
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
L - Left
HF Functional height
16 mm
ID Technical product number
6864512
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
L Cutting edge length
8 mm
LAMS Inclination angle
0 Degree
LF Functional length
125 mm
LOC-03 B Shank width
16 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
1616
LOC-03 H Shank height
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160105
LPR Protruding length
16 mm
MIID Master insert identification
VPET080201MFR
Name Identifying order number
JSVL2PL1616K08
OAL Overall length
125 mm
STDDES Standard designation
JSVL2PL1616K08
SX Shank cross section shape code
01 - Square shank
WF Functional width
16 mm
Working process
DDA - External turning
