Главная Каталог продукции СЗЦПК инструмент 14 309-01 - Tool holder for longitudinal and transversal turning JS08H-SEXPR047

JS08H-SEXPR047

JS08H-SEXPR047 JS08H-SEXPR047 JS08H-SEXPR047

JS08H-SEXPR047

Tungaloy
Артикул: 6821737
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
11 Degree
B3A Inscribed circle diameter Pos. A
3.97 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
1.59 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
TT - Tungaloy
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.2 mm
DCC Design configuration style code
S - Solid steel, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state valid from
8/24/2006
DIN
ZYL00802205
DIN CSW1
EP0401 3N

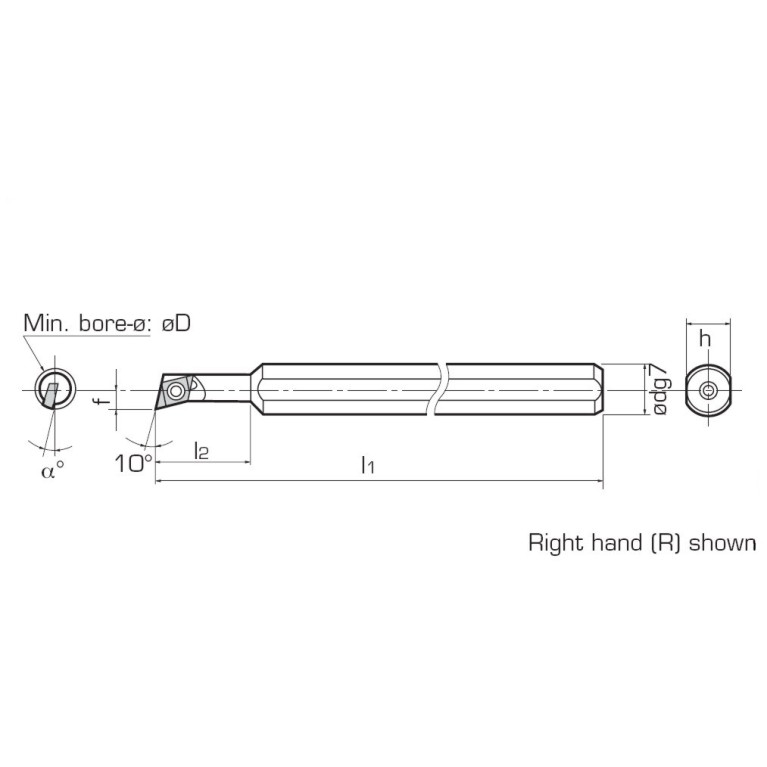

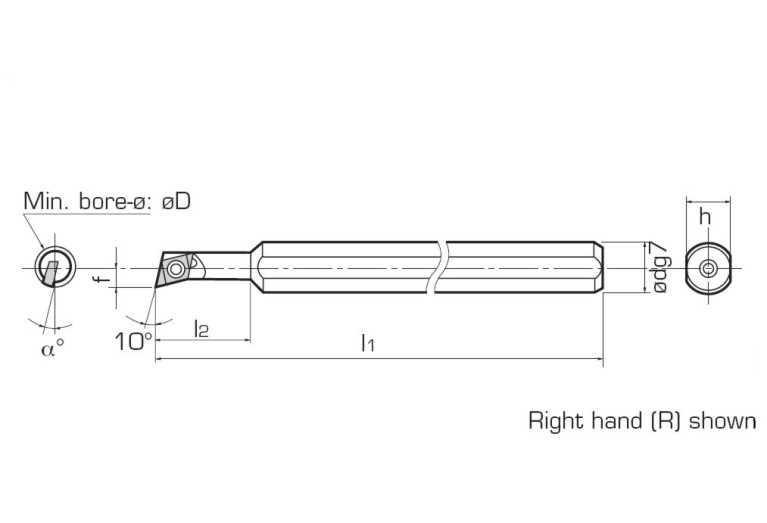

DMIN Minimum bore diameter
7 mm
FamilyProducts
Toolholder J-series JS08H-SEXPR
GAMF Rake angle radial
12 Degree
HAND Cutting direction
R - Right
ID Technical product number
6821737
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
LF Functional length
100 mm
LH Head length
20 mm
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 H Shank height
7 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802205
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
JS08H-SEXPR047
OAL Overall length
100 mm
SX Shank cross section shape code
22 - Round shank
THSC Tool holder shape code
G - straight shank design
WF Functional width
3.6 mm
Working process
No working processes available
