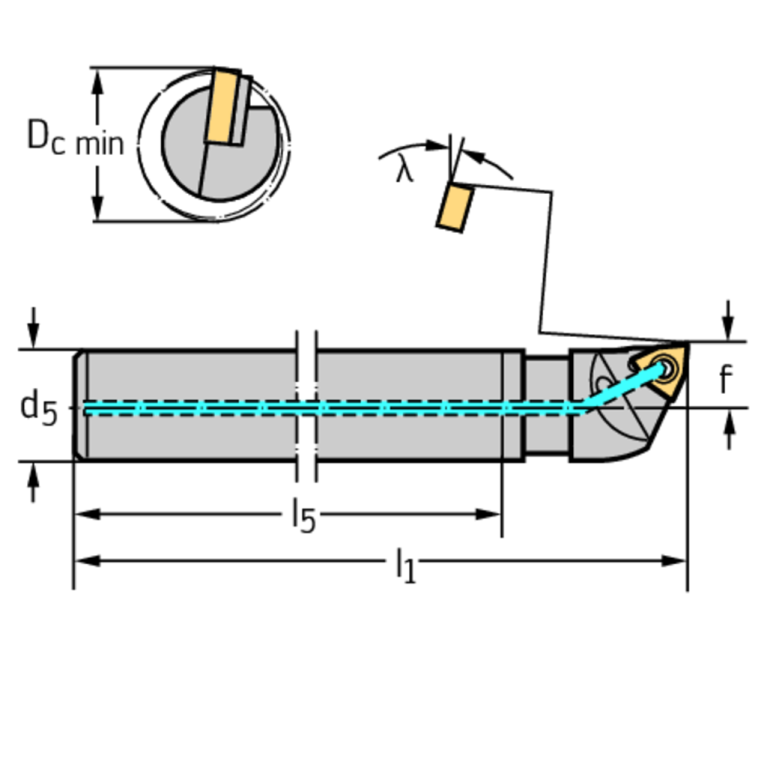

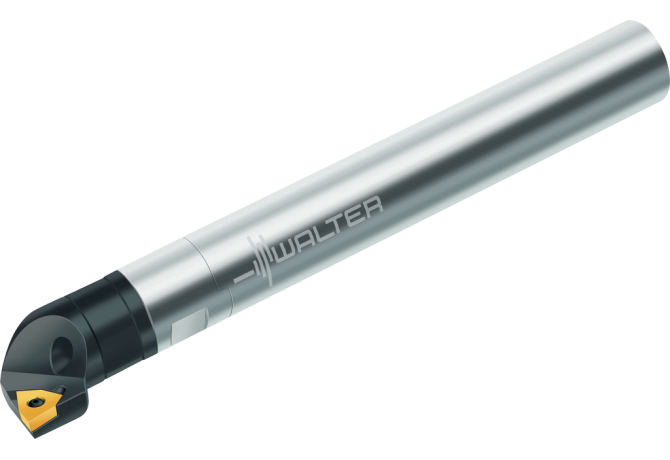

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning EB354.WC03.CS

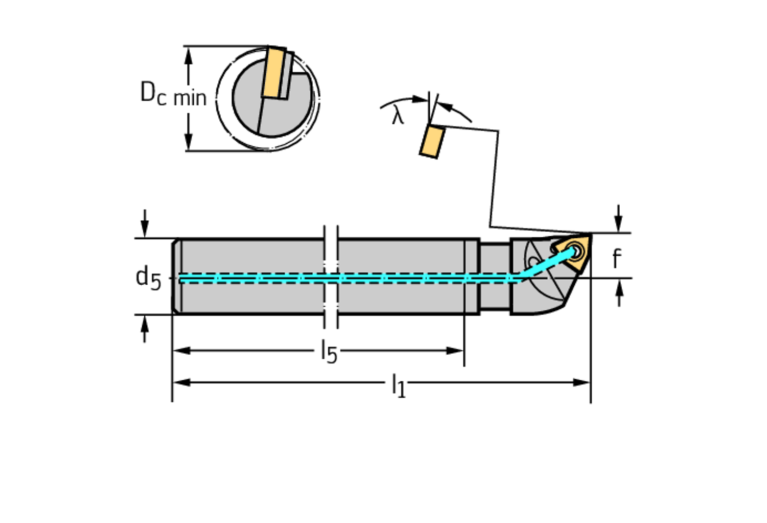

EB354.WC03.CS

Артикул: 5008249

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL00800105

DMIN Minimum bore diameter

8.8 mm

EPSR Insert included angle

80 Degree

FamilyProducts

Solid carbide boring bar for precision boring with insert holder EB100

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

R - Right

HF Functional height

0 mm

ID Technical product number

5008249

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISO

ZYL01F8000$$$$

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

3.8 mm

LAMS Inclination angle

0 Degree

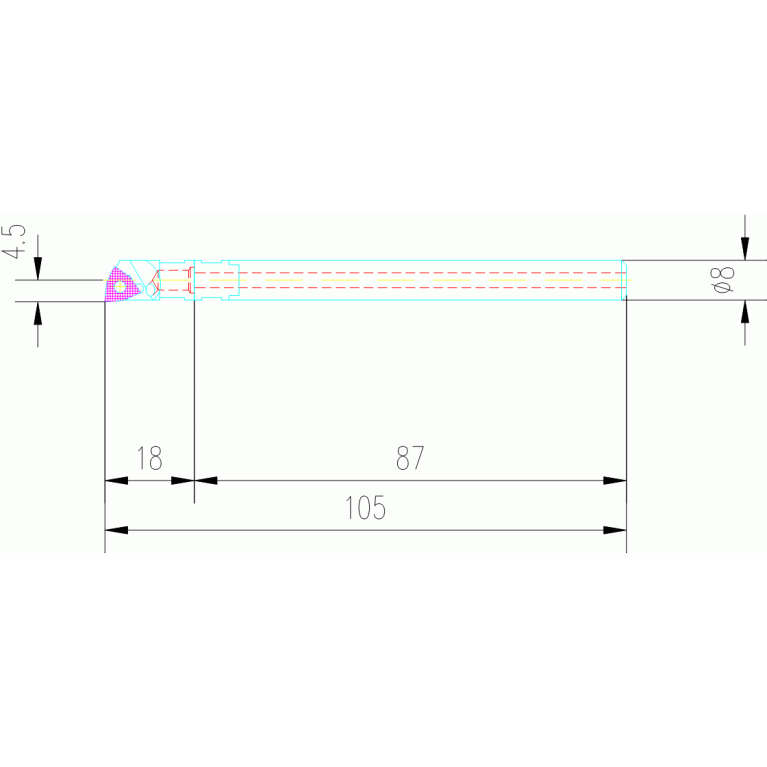

LF Functional length

105 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 ISO

ZYL01F8000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

LPR Protruding length

18 mm

MIID Master insert identification

WCGW 03 02 02

Name Identifying order number

EB354.WC03.CS

OAL Overall length

105 mm

WF Functional width

4.5 mm

Working process

BAB - Open by boring

WT Weight of item

0.092 kg
