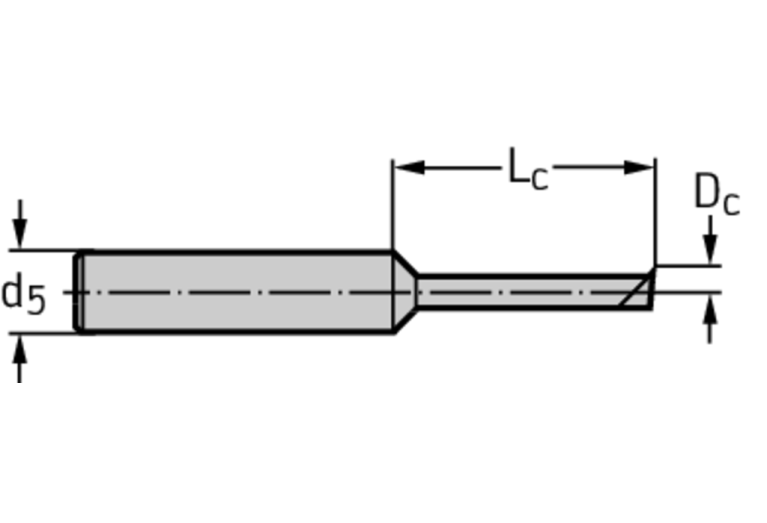

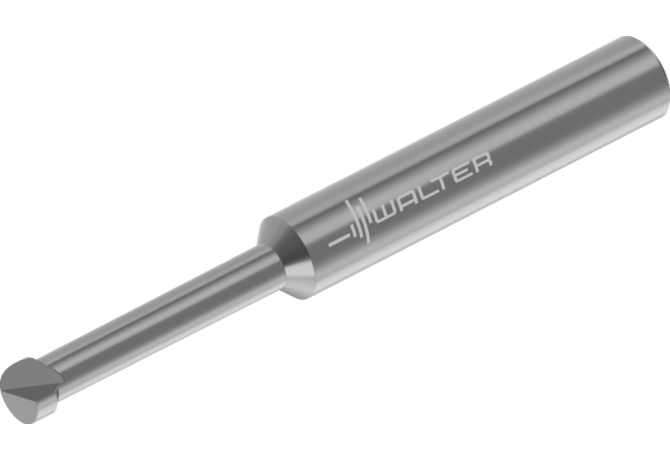

EB302 WK10

EB302 WK10 EB302 WK10 EB302 WK10 EB302 WK10

EB302 WK10

Walter
Артикул: 5008217
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00400105
DMIN Minimum bore diameter
3 mm
FamilyProducts
Brazed boring bar EB100
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
5008217
Interface codes
J6 / J61
ISO
ZYL01F4000$$$$
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
LAMS Inclination angle
0 Degree
LF Functional length
35 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0040
LOC-03 DCONMS Diameter
4 mm
LOC-03 ISO
ZYL01F4000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00400105

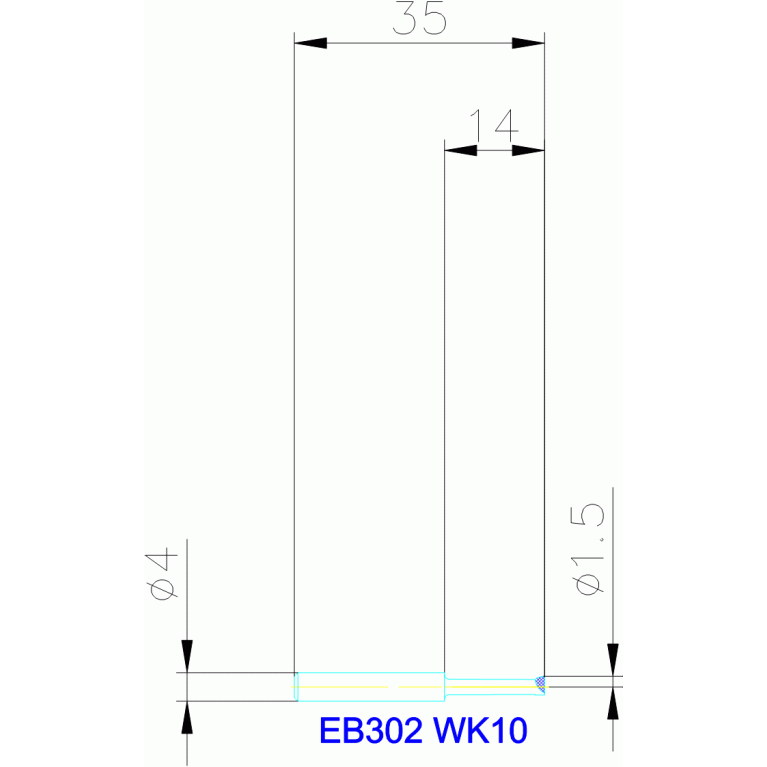

LPR Protruding length
14 mm
Name Identifying order number
EB302 WK10
OAL Overall length
35 mm
WF Functional width
1.5 mm
Working process
BAB - Open by boring
WT Weight of item
0.017 kg
