Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning E12QSTFPR11

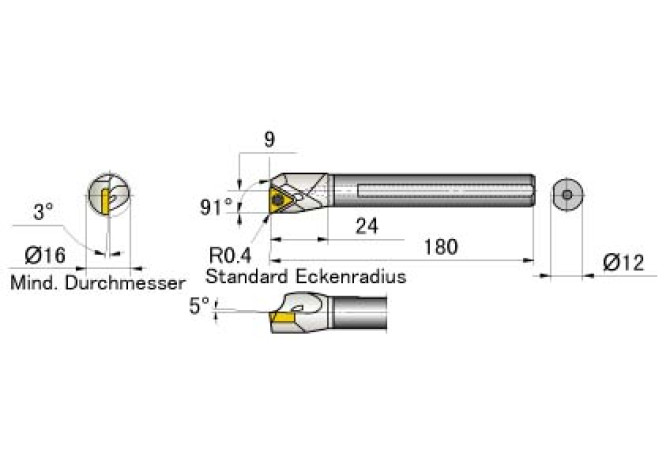

E12QSTFPR11

Артикул: E12QSTFPR11

В наличии

В корзину

Описание

Характеристики

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCC Design configuration style code

E - Hard metal shank with steel head, with internal coolant supply

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL01202215

DIN CSW1

MI-T00699

DMIN Minimum bore diameter

16 mm

EPSR Insert included angle

60 Degree

FamilyProducts

TOOL-HOLDER, INTERNAL

GAMF Rake angle radial

5 Degree

GAMO Rake angle orthogonal

3 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

90 Degree

L Cutting edge length

10.998 mm

LF Functional length

180 mm

LH Head length

24 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01202215

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

E12QSTFPR11

OAL Overall length

180 mm

STDDES Standard designation

E12Q-STFPR11

SX Shank cross section shape code

12 - F3 > F2 (right) Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

9 mm

Working process

DDI - Internal turning
