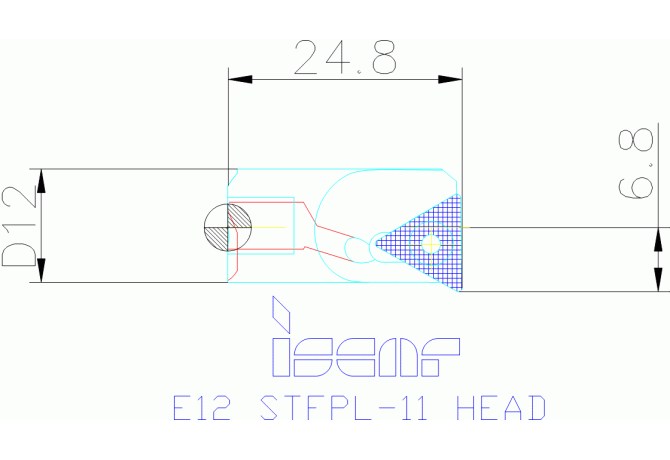

E12 STFPL-11 HEAD

E12 STFPL-11 HEAD E12 STFPL-11 HEAD

E12 STFPL-11 HEAD

Iscar
Артикул: 3602130
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
11 Degree
B3A Inscribed circle diameter Pos. A
6.35 mm
BLDA Tool style code Position A
1
C1A Insert thickness Pos. A
2.38 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2014
DIN
ZYL01202215
DIN CSW1
TP1102043N
DMIN Minimum bore diameter
13 mm
EPSR Insert included angle
60 Degree
FamilyProducts
E12 STFPL-11 HEAD
HAND Cutting direction
L - Left
HF Functional height
5.5 mm
ID Technical product number
3602130
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree
LF Functional length
179 mm
LH Head length
24.8 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03 H Shank height
11 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01202215
MIID Master insert identification
TPG.110204
Name Identifying order number
E12 STFPL-11 HEAD
OAL Overall length
179 mm
STDNO Standard
E12 STFPL-11
THSC Tool holder shape code
A - offset shank design
Working process
No working processes available
